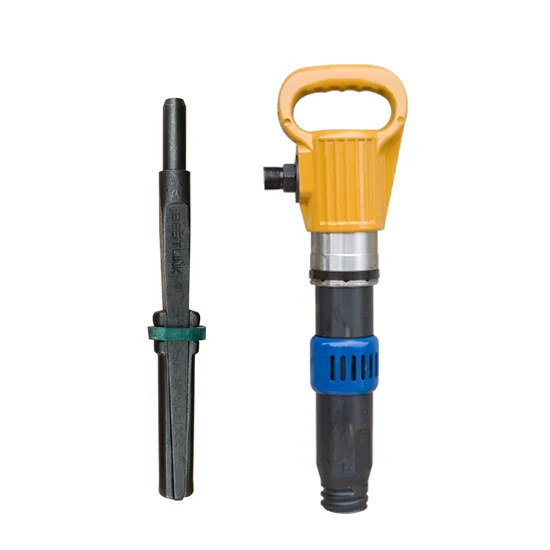

Pneumatic Paving Breaker Pneumatic Hammer

Product Description

TPB30 TPB40 TPB60 TPB73 TPB90 Paving breakers

High technology to front head design provides excellent durability and low maintenance cost. Alloy steel forgings provide maximum durability. Four bolt back head design stands up in rugged us. Latch type forged retainer for quick change. Noise reduction muffler is optionally available. Specifications:

MODEL	CHUCK SIZE	STROKE	BORE	IMPACT RATE	WEIGHT	LENGTH	AIR CONSUMPTION	AIR INLET	HOSE SIZE
	inch	inch (mm)	inch (mm)	B.P.M.	kg	inch (mm)	CFM (m³/min)	inch	inch (mm)
TPB-30	7/8x1/4 or 1x4-1/14	3-3/8(85)	1-3/4(44.45)	1550	15	22-1/4(564)	49(1.4)	3/8 NPT	1/2(12.7)
TPB-40	1x4-1/4	5-3/4(146)	1-3/4(44)	1100	18	26(660)	56(1.6)	1/2 NPT	3/4(19)
TPB-60	1-1/8x6 or 1-1/4x6	4(100)	2-1/4(57.15)	1400	30	25-3/8(645)	70(2)	3/4 NPT	3/4(19)
TPB-73	1-1/8x6 or 1-1/4x6	5-5/16(144)	2-1/4(57.15)	1200	31	27-3/16(690)	63(1.8)	3/4 NPT	3/4(19)
TPB-90	1-1/8x6 or 1-1/4x6	6(152)	2-5/8(66.67)	1250	42	28-1/2(723)	77(2.2)	3/4 NPT	3/4(19)

* Dynamic pressure: 90 PSI(0.6MPa) for all products

---
