US$13,600.00-18,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Controller
Taiwan Syntec Controller
Table
Double Layer PVC Vacuum Table
Dust Collector
3kw with Double Bags
Transport Package
Plywood Box
Specification
working area: 1300mm*2500mm
Production Capacity
600 Sets/ Year
Product Description

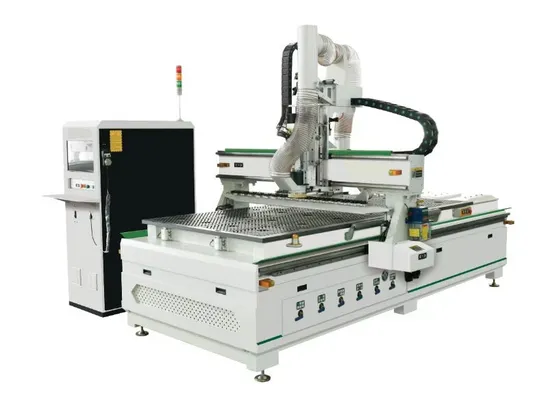

CNC Woodworking Engraving and Cutting Machinery
Model DLM-49L
It is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.
The standard configuration of DLM-49L is:
| Spindle Power | 9kw HSD |
| Controller | Syntec / Taiwan LNC |
| Motor | Jaskawa servo motor / Delta servo motor |
| Gear Reducer | planetary gear reducer |
| Table | double layers PVC table |
| Vacuum Pump | 5.5KW Chinese Becker pump |
| Tool Magazine | ISO-30 8-slot linear plastic steel tool magazine with tool setting blocks |
| Software | Router-8 |
| Transmission | Precision helical rack and pinion drive & Z axis direct drive |
| Ball Screw | Taiwan HIWIN / PMI |
| Guide Rail | Taiwan |
| Table Size | 1220x2440mm |
| Max. Traveling Size (X/Y/Z) | 2540x1320x200mm |
| Max. Workpiece Height | 150mm |
| Dimensions (X/Y/Z) | 3500x1800x2000mm |
| Net Weight | 1800kg |
Upgrade: Positioning air cylinder Boring aggregate Pushing device Protection enclosure Laser light screen Spindle cover Full-body cover HSK-63F spindle 8-slot carousel plastic steel tool magazine Movable vacuum suction chucks +/-90°spindle horizontal processing design OSAI controller 12KW air cooling spindle Aluminum alloy tool magazine Loading & unloading roller table floating table
Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.
>>
