US$4,000.00-9,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Flour, All, Beans, Wheat, Starch, Rice flour, Food,Feed
Cleaning Method
Easy Cleaning
Surface Treatment
Sand Blasting
Stainless Steel
SUS304, SUS3016
Connection Type
Flange Connection/Clamp Connection
Transport Package
Neutral Packing of Non-Fumigation Wooden Case
Specification
include strong pernament rare earth magnets
Product Description
Product Description

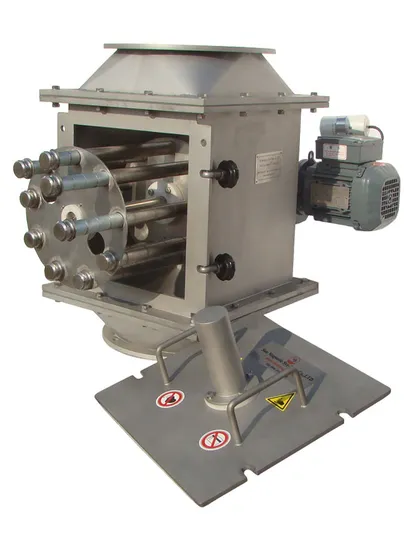

Rotating magnetic separator to rid ferrous metal from powdery, granular and flaky materials with high viscosity and poor flow ability which is under gravity flow and have tendency to bridge and choke. The rotational design of magnetic filter bars serve to break up any clumps of materials.
Detailed Photos
Product Parameters
1) Magnetic Performance:8'000-13'000GS
2) Material of housing and other parts: 304 stainless steel/316 stainless steel
3) Surface finish: Sand blasting
4) Easy cleaning type with double tubes available
5) Inside magnets: Strong permenent rare earth magnets
6) Working Temp.<: 80ºC, 100ºC, 120ºC, 150ºC,
Square version
Model No. | Dimension (mm) |
AXB | H |
SCXR200 | 200X220 | 330 |
SCXR250 | 250X270 | 340 |
SCXR300 | 300X320 | 450 |
SCXR350 | 350X370 | 470 |
SCXR400 | 400X420 | 550 |
Circle version
Model No. | ΦA mm | Corresponding Square Version | |
H mm |
SCXR1520 | 150 | SCXR200 | 460 |
SCXR2025 | 200 | SCXR250 | 520 |
SCXR2530 | 250 | SCXR300 | 580 |
SCXR3035 | 300 | SCXR350 | 635 |
SCXR3540 | 350 | SCXR400 | 735 |
Certifications
Packaging & Shipping
SunMag provide different packing methods to protect the magnetic separator in good condition to suit for Air, Internationa express, Sea shiping methods.
Goods will be packed into carton, wooden pallet, or wooden case.
Or if the customer has specific requirements of packing, we will arrange the packing according to this.
Company Profile
Sun Magnetic Sys-Tech Co., Ltd founded in 2001 by the founder Mr. Sun Jianguo in Beijing, China, as a professional and well equipped manufacturer of permanent magnetic system, we have more than 20 years of experience in R&D, design and manufacture.
SunMag foucus on design an manufacture of magnetic separators to remove ferrous contaminants from dry solids(powder & granule), liquids and slurries in the processing industry, and provides customers with professional solution, top quality and great service.
With quality assurance of ISO9001 certification, our products are mainly exported to Southeast Asia, Europe, North and South America and Australia, and widely used in food industry, pharmaceuticals Top quality and continuous improvement are perpetual commitment to customers in the entire process of service.
Exhibitions Attended:
Domestic market:Lithium battery exhibition, Packing exhibition, Food processing exhibition, Plastic exhibition Pharmaceuticals exhibition, and so on.
Abroad market: GEAPS(USA), IAOM(USA & Southeast Asia),IPPE(USA), VICTAM(Europe & Thiland), IDMA(Türkiye), Eurotier(Europe),
For more specific information of our all kinds magnetic separator, you could visit our website.
Our Advantages
1) The internal magnetic bar continuously rotates to break up the material and avoid bridging and blocking the material
2) Magnetic Performance: 8'000Gs/10'000Gs/12'000Gs/13'000Gs
3) Different dimensions of squares and circles can be selected for inlet and outlet, suitable for various working conditions
4) SUS304/SUS316 material meets food grade requirements
5) With explosion-proof motors and different voltages
6) Available for poor fluidity, viscous materials, etc
FAQ
Q1:How about the cleaning effect of SunMag Magnetic Separators?
A: ABOVE 99%.
Q2: How about your delivery date?
A: 15-40 days.
Q3: Do you test all your magnetic separtor before delivery?
A: Yes, we have 100% test before delivery
Q4: What is the usual payment method?
A: T/T, L/C, VISA, or other payment .
Q5: Could the magnetic separator be customized?
A: All the magnetic separator could be customized according to the customer's specific requirements.
Q6: Do you have a factory?
A: We are a manufacturer, all the magnetic separators are designed and produced by ourselves, and we have our own technical R&D team.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
>>
