High Stability Horizontal Slant Bed Turret CNC Lathe TT7550

Product Description

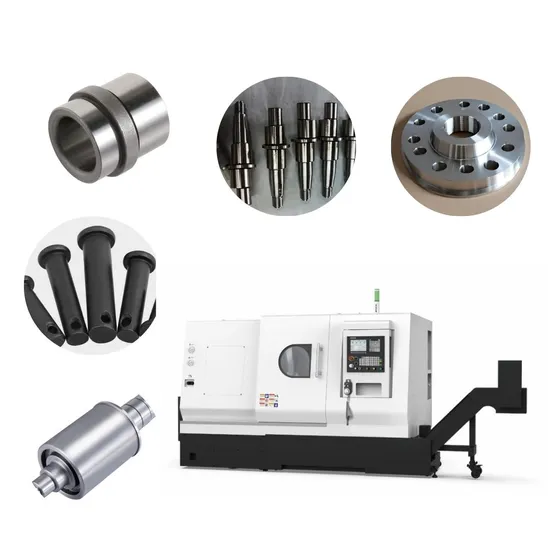

TT7550 CNC Lathe Machine
Main features: The overall inclination of the bed is 30'large-span roller guide way
Spindle bearing adopts high rigidity ROBUST structure.
Large size servo turret, standard configuration 32 tool shank, ф 50 lD tool holder.
Suitable of disk parts processing within ф500.
High rigidity mandrel-type tailstock, with the center bearing embedded in the sleeve.
Floor separated water tank and chip conveyor, convenient for cleaning.
Specification:

Model No.	TT7550
Basic
Chuck size	10 inch/12 inch*
Swing diameter over bed	Ø 650 mm
Swing diameter over slide	Ø 400 mm
Max turning length	500 mm
X/Z axis travel	280/600 mm
Bar through hole	ø92 mm
SPINDLE
Spindle speed	3000r/min
Spindle nose	A2-8
Main motor power	15kw
Clamping	Hydraulic
X/Z axis rapid travel speed	24/24 m/min
X/Z axis servo motor torque	18/18 N.m
Tools	12T-125 servo turret/12T-125 powered turret*
Tool shank dimension	32×32 mm
Boring tool size	ø32 mm
Repeatability accuracy X/Z axis	0.004/0.005mm
Tailstock type	Hydraulic/Servo*
Tailstock quill diameter	ø130mm
Tailstock quill travel	150 mm
Tailstock quill taper	MT 5
Coolant pump power	480 w
Total power consumption	27 kva
Machine Dimensions
Overall dimension(L×W×H)	4400×2100×1900mm
Weight	4900kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
