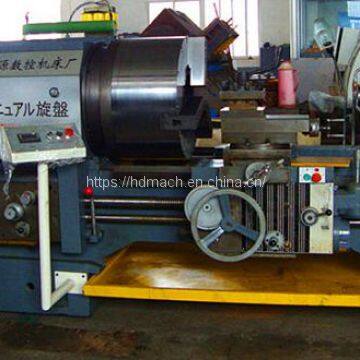

This series pipe lathe machine is manual type, they are widely used in oil, chemical, geological prospecting industrial etc for kinds of pipe thread turning. Especially suitable for tool joint rough machining and semi-finishing machining. It also can be used as conventional lathe, which can cut excircle surface, inner hole, end face, circular arc, taper, step, chamfer, metric/inch thread etc:
Items
| Unit
| HY-1320
|
Max. swing diameter over bed
| mm
| φ680
|
Max. swing diameter over saddle
| mm
| φ400
|
Max. diameter of workpiece
| mm
| φ190
|
Max. length of workpiece
| mm
| 1000
|
Manual chuck diameter
| mm
| φ500
|
Spindle speed range
| r/min
| 20～350
|
Spindle bore diameter
| mm
| φ200
|
Carriage quick moving speed
| m/min
| 3.8
|
Distance from tool base to spindle center
| mm
| 32
|
Tool section dimension
| mm
| 32×32
|
Tool rest turning angle
|
| ±90°
|
Spindle center height
| mm
| 1100
|
Max. travel of horizontal tool rest
| mm
| 445
|
Max. travel of small tool rest
| mm
| 200
|
Tailstock sleeve diameter
| mm
| 100
|
Tailstock sleeve stroke
| mm
| 250
|
Tailstock sleeve tape hole
|
| Mohs 5#
|
Tip taper
|
| Mohs 5#
|
Main motor model
|
| YPNC-33.3-11-B-B3
|
Main motor power
| kW
| 11
|
Roughness
| mm
| Ra1.6～Ra3.2
|
Machine weight
| ㎏
| 5700
|
Machine dimension（L×W×H）
| mm
| 3700*2000*1600
|
