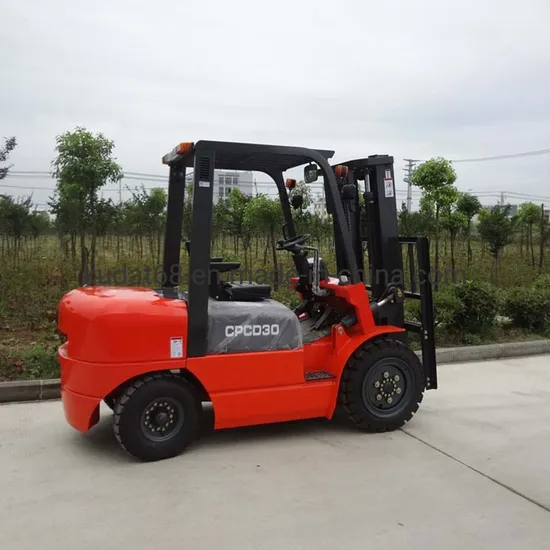

3 Tons Four Wheel Diesel Forklift Truck with Japanese Engine

US$8,500.00-11,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CPCD30
Cab Location
Not Adjustable
Type
Powered Pallet Truck
Power
Diesel Engine
Load Capacity
1T - 5T
Fuel
Diesel
Load center
500mm
Lift height
3000~5000mm
Condition
New
Color
Orange or Red
Rated Load
3000kg
Lifting Height
3000mm
Fork Size
1070*125*45mm
Free Lift Height
160mm
Min Turning Radius
2400mm
Max. Lift
4262mm
Max. Grade Ability
20%
Total Weight
4300kgs
Fuel Tank Capacity
60L
Transport Package
Bulk
Specification
SGS CE
Trademark
KUDAT
Origin
China
HS Code
8427209000
Production Capacity
500PCS/Month

Packaging & Delivery

Package Size
98.00cm * 60.00cm * 56.00cm
Package Gross Weight
1800.000kg

Product Description

Features:
1.The most reasonable system matching after repeated verification
2.Selection of domestic first-line brands or imported brands parts
3.After 400 hours of continuous enhancement test
4.Adopt high quality automobile paint and advanced paint treatment equipment to ensure the quality of paint
5.Establish detailed process control system to ensure quality
Main Specification:
Model Unit CPCD30
Power type Diesel
Rated capacity kg 3000
Load center mm 500
Mast Lifting height mm 3000
Free lift height mm 160
Fork size(L*W*T) mm 1070×125×45
Tilting Angles(Front/Rear) deg 6°/12°
Front overhang mm 479
Exterior Size Length without fork mm 2682
Overall width mm 1225
Mast drop mm 2065
Max. lift mm 4262
Front-wheel Overhead mm 2090
Min Turning Radius mm 2400
Min. intersecting aisle mm 2380

Speeds		 Max Driving speeds km/h 18/19
Lifting speeds mm/s 440/480
Lowering speeds mm/s 450/500
Max. grade ability % 20
Total weight kg 4300
Tires Front 28*9-15-12PR
Rear 6.5-10-10PR
Wheelbase mm 1700

Tread		 Front mm 1000
Rear mm 970
Min. ground clearance mm 135
Engine Model Xinchai490 Engine
Rated output kw/rpm 40/2650
Rated torque N.m/rpm 160/1800
No. of cylinder 4
Displacement L 2.67
Fuel tank capacity L 60
