Basic Info.
Application Area
Chemical
Certification
CE, ISO, CE
Voltage
200-240/ 100-120V
Operating type
Cycle Operating
Transport Package
Standard Export Carton
Specification
CE, ISO, SGS
Production Capacity
20000PCS/Year
Packaging & Delivery
Package Size
25.00cm * 18.00cm * 12.00cm
Package Gross Weight
2.500kg
Product Description

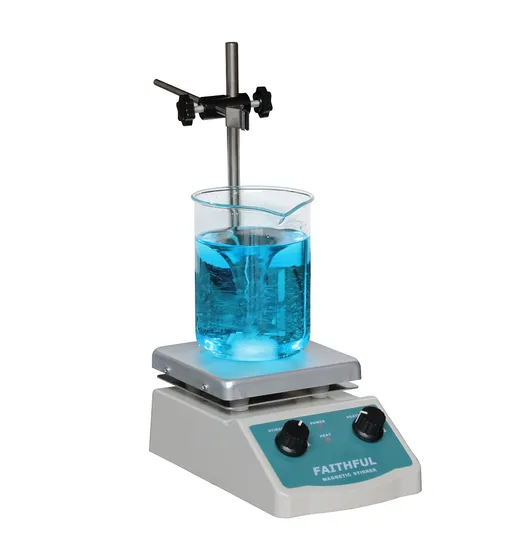

Magnetic Stirrer
Uses:
It is used when liquid heating is needed in industry, agriculture, health and medicine, scientific research and college labs etc.
Characteristics: 1.Heating power and stirring speed is stepless adjustable.
2.With adjustable thermometer rack, stainless steel rods and the stir bar.
Main Technical Parameters:
| Model | SH-2A | SH-2B | SH-2 | SH-3A | SH-3B | SH-3 |
| Function | Max.
Volume
(ml) | - | 2000 | 2000 | - | 5000 | 5000 |
Speed
(r.p.m) | - | 100~2000 | - | 100~2000 |
Working
time | Continuous |
Minimum revolution
(r.p.m) | - | 100 | 100 | - | 100 | 100 |
Max.Temp.
(ºC) | 380 | - | 380 | 380 | - | 380 |
| Structure | Exterior | Cast aluminium, Surface spraying |
Plate
size(mm) | 120×120 | 170×170 |
| Driving mode | - | Motor | - | Motor |
| Motor power (W) | - | 10 | - | 20 |
| Heating Power(kW) | 0.18 | - | 0.18 | 0.5 | - | 0.5 |
| Stir bar | - | PTFE | - | PTFE |
| Controller | Continuous operation | Yes |
| Setting mode | Scale |
| Speed display mode | - | Scale | - | Scale |
| Timer | No |
|
| Operation function | No |
| Temp. Sensor | No |
| Specification | Exterior size (W*L*H)(mm) | 200×120×90 | 265×185x190 |
| Packing size (W*L*H)(mm) | 250×180×120 | 280×210×220 |
| Plate size(mm) | 120×120 | 170×170 |
| Plate load | 3KG | 10KG |
Power supply
(50/60Hz)
Current rating | 110V or 220V |
| NW/GW (kg) | 1.9/3 | 1.9/3 | 1.9/3 | 2.2/3.4 | 2.2/3.4 | 2.2/3.4 |
>>
