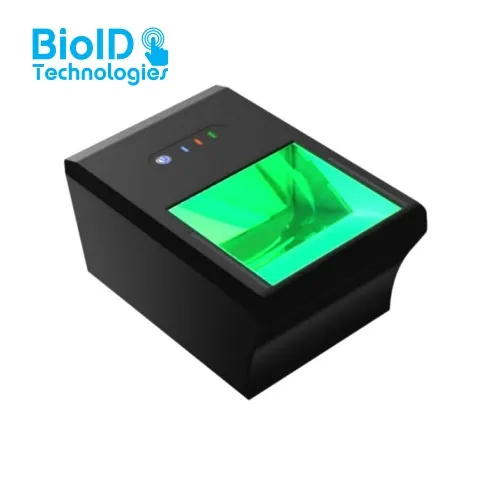

The BioPalm is the compact and lightest livescan system in the industry for criminal identification, forensic analysis and suspect enrollment. The BioPalm scanner employs the most advanced optical technology and dedicated special light sources that enables users to obtain the highest quality images including single flats, rolls, 4-fingers slap, writer's and palm print. The BioPalm is optimal device for government and law enforcement agencies handling AFIS criminal bookings and forensic applications. Contact us for more information.
| Image Types | Flats, rolls, slaps, lower, upper and writer's palm |
| Image Size | Palm prints up to 5.0" x 5.0" |
| Flat 4-fingers slaps prints up to 3.2" x 3.0" |
| Single rolled fingerprints up to 1.6" x 1.5" |
| Image Resolution | 500 dpi, 256 levels of gray |
| Image Quality | FBI's IAFIS IQS Appendix-F certified |
| Image Format | BMP, WSQ, ISO/IEC 19794-4 |
| Acquisition Mode | Auto capture and manual mode |
| Capture Speed | 3 fps for palmprint, 20 fps for fingerprint |
| Buzzer | On board programmable |
| Power Supply | 5V DC via USB or 100-220V AC, 50-60Hz |
| Interface | USB 2.0 |
| Weight | 4.6 kg |
| Dimensions (L*W*H) | 315mm x 190mm x 156mm |
| Operating Systems | Windows, Linux OS |
| Software & SDKs | Scan demo, APIs for system integration |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity Range | 10% to 90%, non-condensing |
