PE250*400 Jaw Crusher with Good Price

Product Description

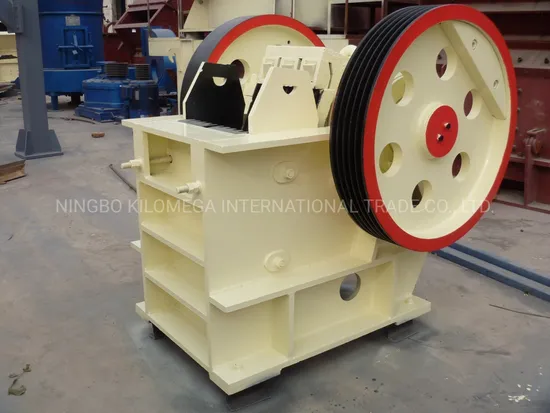

JAW CRUSHER
Application
Jaw crushers were mainly used for crushing and finely crushing various hard ores and rocks in industry. Such as limestone, dolomite, marble, granite, quartz, and pebble.
Structure
Jaw crusher mainly consists of fixed part, rotating part, safety device and regulating device.
Advantage of jaw crusher:
1. Economy (save energy and current consumption)
2. High capacity (reach to 500t/h)
3. Safe and professional design
4. Low Wear (long service life of spare parts)
5. Uniform grain size and shape
6. Simple Maintenance
Service (one-stop service)
Pre-sale service: Selection, designing and manufacturing plant as your request.
Selling service: Designing paper, confirmation detail of sales contract
After-sale service: Installation and trial run, train operator and so on.
Working Principle Of Jaw Crusher:
The motor drives the eccentric shaft to rotate by the V-belt & the slot wheel, then the movable jaw moves back and forth to break the materials in the crushing
cavity which is composed of fixed jaw plate & movable jaw plate and side guard plate.When the movable jaw rises, the angle between the fixed jaw and movable jaw getslarger, and the materials can be broken to reach the crushing target. When the movablejaw is moving down, the angle between the fixed jaw and movable jaw becomes smaller .the end products slide from the discharge opening at the bottom.
Technical data

Model	Opening size (mm)	Max. feeding size(mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Weight (kg)
PE-150x250	150x250	125	10-40	0.6-3	5.5	0.81
PE-250x400	250x400	210	20-60	3-13	15	2.8
PE-400x600	400x600	340	40-100	10-34	30	6.5
PE-500x750	500x750	425	50-100	20-52	55	10.3
PE-600x750	600x750	500	150-200	50-100	55	12
PE-600x900	600x900	500	65-160	30-75	75	20
PE-750x1060	750x1060	630	80-140	72-130	110	28
PE-800x1060	800x1060	640	100-200	85-143	110	30
PE-900x1060	900x1060	685	230-290	100-250	110	31
PE-900x1200	900x1200	750	95-165	87-164	110	50
PE-1000x1200	1000x1200	850	195-265	197-214	110	51
PE-1200x1500	1200x1500	1020	150-300	250-500	160	100.9
PEX-150x750	150x750	120	18-48-	5-16	15	3.5
PEX-250x750	250x750	210	25-60	8-22	22	5.5
PEX-250x1000	250x1000	210	25-60	10-32	30-37	6.5
PEX-250x1200	250x1200	210	25-60	13-83	37	7.7

---
