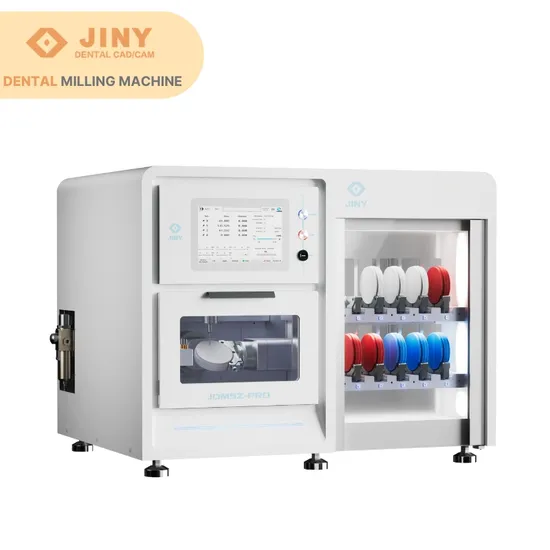

5 Axis Dental Dry Milling Machine with Automatic Disc Changer

US$28,800.00
1-4 Pieces
US$26,800.00
5-9 Pieces
US$24,800.00
10+ Pieces

Basic Info.

Model NO.
JDM5Z PRO
Application
Adult, Child
Nature
Specialized Equipment
Feature
Waterproof
Usage Times
Non-Disposable
Material
PVC
Milling Mode
Dry Cutting
Max Power
0.5kw
Cooling Type
Air Cooling
Max Spindle
Speed: 3000-60000rpm
Dimension
933*758*660 (mm)
Weight
160kg
Tool Capacity
6 PCS Automatic Tool Change
Milling Range
a: 360 Deg; 90 Deg; B: 30 Deg;
Space Style
Desktop
Transport Package
Wooden
Specification
1000x800x700mm
Trademark
JINY
Origin
China
HS Code
8465990000
Production Capacity
2000units/Year

Product Description


Product Name 5 Axis Zirconia Milling Machine.
Milling Mode Dry cutting
Max Power 0.5KW
Main axis speed 60000 rpm
Cooling Type Air Cooling
Rotating axis working range Milling Range: A: 360° ±90° B: ±30°
Tool Capacity 6 pcs automatic tool change
Input voltage AC 100~235V,50~60Hz
Milling Range A: 360° ±90° B: ±30°
Production 10-20min/Piece
Space Style Desktop
Processing material Zirconia, PMMA, resin, wax, PEEK
Product type Crowns, inlays, all-ceramic crowns, bridges, oxide
Processing methods Dry milling
Material size 98mm*10mm to 98mm*25mm
Machine dimensions 933*758*660 (mm)
Weight 160kg

Guided CAD/CAM production and maintenanceCAD/CAM production and maintenance have never been easier. The Ceramill Motion 3 combines maximum user-friendliness and process reliability due to HMI and RFID technology. With an intuitive interface and sophisticated tracking technology, the machine guides you intelligently through the processes. This allows you focus on essential things and saves time, money and nerves.
Analytics in Motion
Owing to the integrated analysis functions via AG.Live, you are able to continuously optimize capacity and resource management and fully gear the use of the Ceramill Motion 3 to efficiency, quality and customer satisfaction.
Excellence in quality and diversity
Never has a single machine offered so much motion! The Ceramill Motion 3 is ready for any indication and enables fully automated dental arch restorations of the highest quality due to innovative carving and sculpturing technology (C-Clamp) in the accustomed Motion quality.
