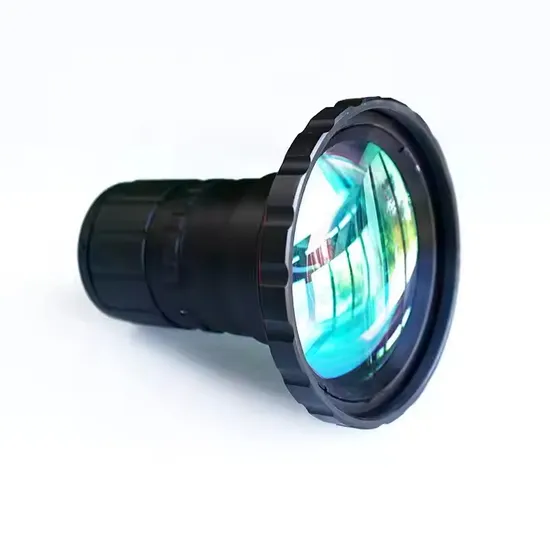

Hot Sales Nir900-1700mm 12.5mmfl Infrared Lens for Infrared Camera CCD Lens
US$500.00
1 Set
(MOQ)
Basic Info.
Usage
Optical
Type
Convex Lens
Transmittance
>95%
Shape
Single-lens
Material
Glass
Lenses Color
Grey
Certification
ISO9001, CE
Customized
Customized
Coating
EMI
Back Working Distance
43mm
Average Transmission
>90%
Spectral Range
900-1700nm
Keywords
Nir Infrared Lens
Single Gross Weight
1.000kg
Focal Length
12.5mm
Customized Support
OEM,ODM
Place of Origin
Jiangsu,China
Applicaiton
Nir Thermal Imaging
Circular Fov
37(D)
Focus Type
Manual Focus
Brand Name
Efid
Mount Type
C-Mount
Model Number
Nir-12.5
F#
1.4-1.6
Transport Package
Safety Packing
Specification
Customized
Trademark
Ronar-Smith
Origin
China
Product Description
WAVELENGTH 900-1700NM 12.5FOCAL LENGTH INFRARED LENS FOR INFRARED CAMERA
NIR Lens Near Infrared Lenses are infrared lenses optimized for the near infrared region, from 900 nm to 1700 nm. These aspheric lens achieve high precision performance across the NIR spectrum.
Specifications
Focal Length
12.5mm
F#
1.4-1.6
Spectral Range
900-1700nm
Mount Type
C-Mount
Circular FOV
37°
Back Working Distance
43mm
Focus Type
Manual Focus
Detector
CCD
WAVELENGTH 900-1700NM 12.5FOCAL LENGTH INFRARED LENS FOR INFRARED CAMERA
