Semi-Automatic Blowing/Blow Molding Machine for 400ml Pet Water Bottle

Product Description

Specification of D-R804 Semi-automatic blow moulding machine
https://chinadoria.en.made-in-china.com/product-list-1.html
1, specification of D-R804:
1.1, dimension of blower: L1820*W820*H2230mm;
Weight of blower: 1.2T
Dimension of heater: L1740*W660*H1650mm;
Weight of heater: 400KG
1.2, theoretical output: 0.1 - 2L 1800-2200pcs/h; (4cavity)
1.3, the base of the machine is welded by Q235B 200*70, infrared heater is made of 40*40*1.5 square tube, and Outer structure is made of A3 plate. The appearance is painted, attractive and durable.
1.4, clamping system is made of casting finish machining which could ensure the machine work stably and reliably.
1.5, main components of pneumatic are "FESTO" (German);
1.6, when perform is heating by passing and rotating method to transport perform which could ensure perform is heated equally;
1.7, PLC and operation panel are made in China which could ensure the machine work stably and reliably.
2, specification of D-R804 blower:
2.1, working voltage of blower: single-phase 220V/60HZ,rated power: 1.5KW;
Working voltage of infrared heater: 3P 380V/60HZ (voltage could be adjusted according to the customer's demand)
Rated power: 25KW; actual power: 10KW;
2.2, clamping force: 180KN;
2.3, mould opening stroke: 110-210mm (adjustive);
2.4, maximum size of mould plate: L500*W270mm;
3. TECHNICAL PARAMETER OF D-R804

TYPE	ITEM	UNIT	TECHINICAL DATA (D-R804)
CONTAINER	Product material		PET/PMMA
	container volume	L	0.1-2(4-cavity)
	theoretical output	pcs/hr	0.1-2L:1800-2200
	Max. bottle height	mm	340
	Max. bottle diameter	mm	180
MOULD	Max. mould plate dimension(L*W)	mm	500 * 380
	mould thickness	mm	110-220
	clamping force	KN	180
	mould opening stroke	mm	200
COMPRESSOR	air compressor	M3 /Mpa KW	≥1.2/3.0Mpa 15
BLOWER	power	KW	6
	voltage/frequency	V/HZ	380-240-110/50-60 (3-phase)
SAFETY	auto-emergency alarm	locking device on each step

4, Auxiliary:
4.1, high pressure air compressor:
VH-1.2/30:
4.1.1, packing dimension: 1600*850*1000mm;
Machine dimension: 1550*800*900mm;
4.1.2, power of the motor 11KW;
4.1.3, weight: 320KG;
4.1.4: capacity: 1.2M3/min;
4.1.5, max pressure: 3.0MPa;
4.2, T/C Air filter:
4.2.1 Capacity: 2Nm3/min;
4.2.2, max pressure: 3.0MPa;
4.2.3, temperature≤50ºC;
4.2.4, filtrate precision of T air filter≤3μm;
filtrate precision of C air filter≤1μm;
4.2.5, weight: 2.3KG;

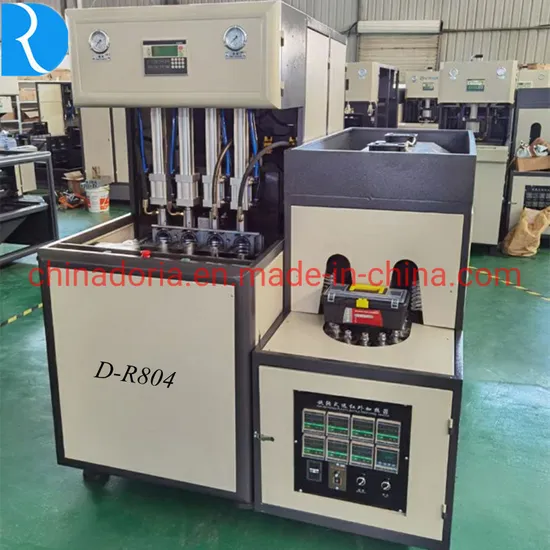

5. Pictures of D-R804:
6. Frequently Asked Questions:
Q: What's the Max. Capacity of the machine?
A: 1.5L.
Q: What's the delivery of the machine?
A: It's about 45days.
Q: What is the term of Payment?
A: T/T, L/C,Western Union, Paypal;
The payment usually is 40% T/T in advance, 60% before delivery.
Q: Can you do the design for us?
A: Yes. We have a professional team having rich experience on products designs. You could send bottle samples to us, and we could make designs according to the sample. Or you could send sketch of the design to us, and we could make 3D design to you.
7. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
8. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China

---
