Litree Municipal Drinking Water Treatment Hollow Fiber UF Membrane (Aries Series)

Product Description

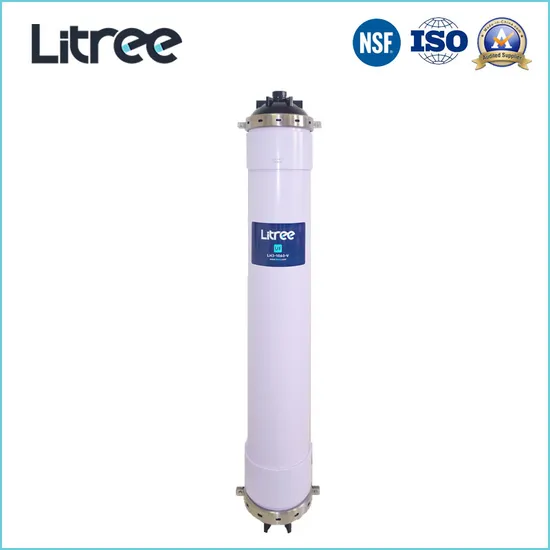

Litree Water Purification Hollow Fiber UF Membrane Module (Aries Series)
About Litree:
LITREE company is the biggest hollow fiber UF membrane manufacturer in China, we provide quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system, and we are also the first brand in Chinese residential UF filter market.

Specifications:

Model	Aries-10	Aries-40
Filtration model	Inside-out	Inside-out
Designed water flux (m3/h)	0.6~1.6	2.4~6.4
Designed water flux (L/m2/h)	60~160
Filtration water turbidity	<0.1NTU
General coliform group separation	No detection in each 100 ml water sample
Feces coliform group separation	No detection in each 100 ml water sample
Bacteria separation	No detection in each 1 ml water sample
Standard membrane area (m2)	10	40
Hollow fiber amount (unit)	3940	11000
Net weight (kg)	18	37
Wet weight (kg)	26	58
Module dimensions (mm)	187x1398	277x1715
Membrane type	Double layer hollow fiber
Filter membrane material	Approved PVC
Membrane housing material	PVC
Material of enveloping glue on ends	Epoxy resin
Molecular weight cutoff	50,000 Daltons
Inside/outside diameters of hollow fiber (mm)	1.0 /1.6

No.	Model	Design flux (m3/h)	Backwash flux (m3/h)	Dimension (mm) L*W*H	Weight Dry/Wet (KG)
1	Aries-10×2-E	1.0-2.0	3.5	975×880×1750	260/300
2	Aries-10×3-E	1.5-3.0	5.25	1220×880×1750	280/340
3	Aries-10×4-E	2.0-4.0	7	1465×880×1750	300/380
4	Aries-10×6-E	3.0-6.0	10.5	1875×850×1850	350/470
5	Aries-10×8-E	4.0-8.0	14	2350×910×1900	390/550
6	Aries-10×10-E	5-10	17.5	2580×910×1900	430/630

Notice: Design flux depends on raw water quality.

Application:
- Turbidity removal for wine; Sterilization and turbidity removal for fruit wine, grape wine, and yellow wine.
- Drinking water treatment in cities, towns and rural area.
- Get rid of pyrogenfor pharmacy water. - Concentration treatment of food, zymolysisand milk.
- Various dialysis and blood filtration in medical treatment.
- Treatment of municipal water, surface water and well water for drinking.
- Pretreatment and post-treatment of reverse osmosis, raw water includes seawater, surface water, well water and sewage water, etc.
- Recycle use of condensation water
- Treatment of manufacturing water for food and beverage.
- Deep treatments of wastewater for recycle.
