Durable Hydraulic Vibro Hammer with Enhanced Eccentricity Moment Torque

Product Description

Product Description
Detailed Photos

Hydraulic pile driver working principle and engineering application scope High frequency hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam, building foundation etc. such short pile projects. Pile Driver Application The efficient of vibration pile method is higher than other methods. It is mainly are fit for driving and extracting sheet piles, I-steel piles, Cement square pile,cylinder pile, larsen piles in various shapes. This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.

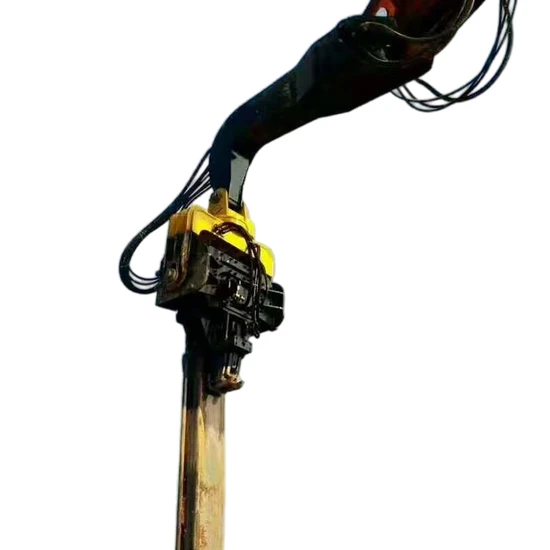

Excavator use Juxiang S350 Sheet Pile Vibro Hammer Short Description: 1. Perfectly crafted for approximately 20-ton excavators, ensuring optimal performance.
2. Outfitted with a Parker motor and high-quality brand bearings for superior longevity.
3. Delivers stable, powerful vibrations reaching up to 360KN, with an impressive piling speed of 7.5m/min.
4. Boasts a robust and resilient main clamp, meticulously crafted through casting for unmatched durability.
The S350 strikes the ideal balance between size, flexibility, and efficiency, making it the perfect solution for a wide range of construction projects.

Product Parameters

Model	Unit	S350	S500	S600	S650	S800
Vibration Frequency	Rpm	3000	2800	2800	2700	2400
Eccentricity Moment Torque	N.M	36	52	70	83.5	126
Rated excitation force	KN	360	450	600	650	800
Hydraulic system pressure	Mpa	32	32	32	32	32
Hydraulic system flow rating	Lpm	250	240	315	310	310
Maximum pile length (m)	m	6-9	6-15	6-18	6-18	6-22
The auxiliary arm weight	Kg	800	800	900	900	1000
Total Weight	Kg	1750	2750	3200	3200	3600
Suitable Excavator	ton	18-25	27-37	36-50	42-50	50-70

Certifications
Packaging & Shipping
To ensure the utmost protection of your goods, we provide professional, eco-friendly, convenient, and efficient packaging services.
Packaging details: Secure export wooden box packaging or customized as per your specific requirements.
Delivery Details: Expect delivery within approximately 20-30 working days post-payment.
We rigorously test our products before delivery to guarantee each machine meets our high standards. Post inspection, we load the goods onto container trucks for transport to the port.
Our Advantages
Our product is compatible with excavators from various renowned brands, and we've formed stable, long-term partnerships with several well-known industry leaders.
Pile Hammer How to Work?
The vibrating pile hammer utilizes high-frequency vibrations to transmit vertical motion to the pile body, which disrupts the soil structure around the pile, reducing its strength. The surrounding soil becomes liquefied, lowering the frictional resistance between the pile's sides and the soil. The pile is then driven into the ground using the excavator's downforce, the vibrating pile hammer, and the pile's weight. For pile extraction, vibrations are applied while the excavator's lift force pulls the pile out. The required excitation force for pile driving is determined by site-specific soil conditions, moisture content, and pile type.
FAQ
1. Q:How to chose the suitable model?
A: Please kindly advise your excavator weight or model, then we will help you to decide the suitable model.
2. Q: Is your vibro driver dangerous for work?
A: Our machine operate contact-free and there is no impact force on the drill rod, so our machine is not dangerous for work.
3. Q:Is your size can be custome made?
A:Yes, we can custom made according to your requests.
4. Q:Do you offer after-sale service?
A: Yes, we will offer you machine operation instructions. 6 months of warranty time for the motor will be offered to our customer dating from the receipt day. Besides, we will offer life long technical instruction.
5.Q:How To Order:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.

---
