Customized Multi Spindle Drilling Tapping Machine for Aluminum Parts

Product Description

Product Description

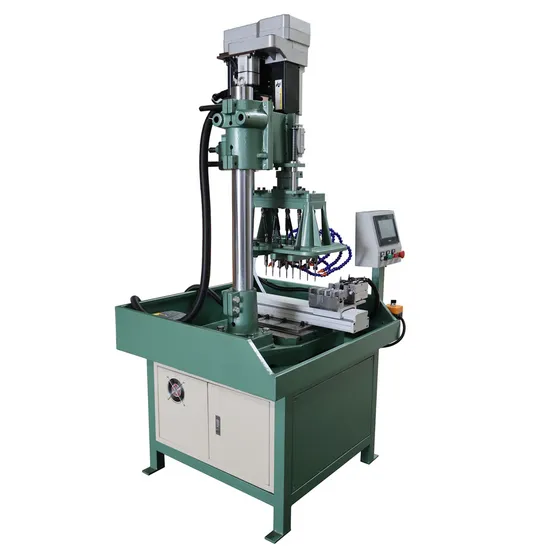

Double servo motor type drilling tapping machine automatic with servo fast moving module for aluminum parts
Chansin double servo type drilling tapping machine uses a double servo motor machine head, which is light in weight and can be easily converted by drilling and tapping function. , PLC control makes operation more convenient and simple.
* PLC control
* Feeding and unloading manually
* Drilling 4 holes on the left and Tapping 4 holes on the right automatically
* Customized clamp fixture with servo fast moving module
Product Parameters

Drilling Range	φ3-φ16mm
Tapping Range	M3-M16
Spindle sleeve diameter	φ70mm
Spindle Travel	75mm
Spindle center to column	325mm
Spindle center to column	120-420mm
Spindle Tapper	JT6
Spindle rotation speed	0-1500rpm
Host up down moving range	0-420mm
Feed Motor Power	1kw
Spindle Motor Power	3kw
Electricity	50HZ 3 phase
Net weight	400KG
Gross Weight	500KG
Packing Size	128cm*105cm*220cm

Detailed Photos
Double servo motor type drilling tapping head CXSF-92 Spindle Motor: 3kw
Feed Motor: 1kw
Servo motor drive: Xinje brand
Multi spindle drilling tapping head Size: U130X330 Spindle : ER11
Customized fixtures
* Customized clamping fixtures for processing 4 workpieces at one stroke * holding with cylinder
* servo type fast moving module
Electri box
* Xinje PLC * Xinje servo drive
HMI control pannel with color touch screen

Brand: Xinje
FAQ
1. Are you a manufacturer or trade company? -- Manufacturer
2. What is payment terms? -- 30% -50% deposit, the balance will be paid before delivery
3. What is the warranty time ? -- One year warranty and life time maintenance.
4. Do you provide OEM service?-- Yes
5. Can you send engineers to serve overseas ? -- Yes, You are responsible for round-trip air tickets and accommodation of our engineers.
6. What is the loading port ? -- Shenzhen / Guangzhou port

---
