Factory Direct Sales Manual Feeding Semi Automatic High Quality Assurance Bottle Blowing Machine Pet

Product Description

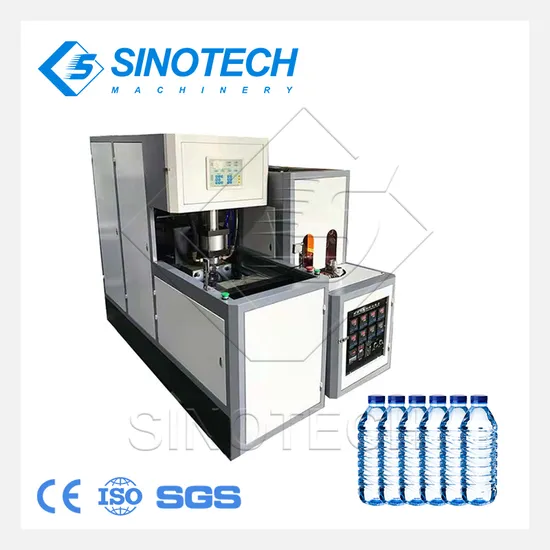

20liter 5 Gallon Pet Bottle Blow Molding Machine

Detailed Photos
01 LCD-Touch Screen
Easy operation and control
02 Anti-Pinch device(Two button) to ensure safe production
03 AirTac Pneumatic valves,
Equipped with Pre-blow, easy installation
04 Built-in low pressure converter,
No need low pressure air compressor.
Help customers save investment costs.
05 Heating Oven(Infrared heating tube),
Preforms heating by Linear Lamp heating before bottle blowing.
06 Mould of Bottle, #45 steel with good quality of CNC manufacture,
Customize by your request, Equip with Air cooling or Chiller

Product Parameters

ITEM	SA-1L-4/1
Output	1300-1500BPH,Volume: 0.1-1l
Bottle volume	0.1 - 1l
Neck diameter	28-80 mm
Low pressure	10 bar
Blowing pressure	15 (up to 25) bar
Low and high pressure air demand	1.2m³/min for bottle 1L
Cooling liquid temperature	7-9 °С
Voltage supply	380 V / 50 Hz
Installed power	22 kW
Overall dimensions	1870x720x1560mm(1pc) 1710x760x1810mm(1pc)
Weight	~ 500 + 220 kg

Production Process
Mold Display
Bottle Design

Company Profile
FAQ
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.
Q: Do you provide any spare parts with machine?
A: Yes, we offer all necessary spare parts together with machine sending and 3 days spare parts delivery after machine sale.(contact us for packing list )
Q: How about your after-sale service?
A: We offer manual instruction and engineer training before loading, after shipment we provide 24 hours online support, video technical support or field installation assist.
Q: What is the lead time?
A: We have standard model machine in stock.It can be delivery within 1 week. If need to make mould, the delivery time need half month after drawing confirmed.
Q: What is the warranty period for your machine?
A: 12 months warranty for components and technical support.
Q: Do you provide custom machines?
A: Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: What's the advantage of SINO-TECH?
A: We provide customers with turnkey projects. Including plant design, blow molding machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time for customer.
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.

---
