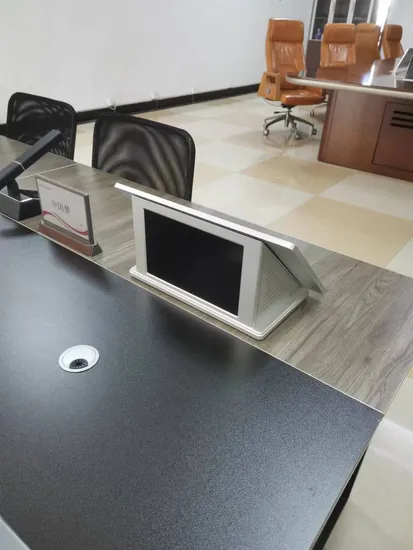

Table top display screen for vedio meeting room 17.3" Screen+ 7" screen +PC 1.17.3 inch LCD touch single screen/dual screen lifting screen 2. Product color: sandblasted bright silver, sandblasted bright black 3. Product size: 476 * 70 * 565MM 4. Chassis size: 462 * 60 * 562MM 5. Desktop opening size: 477 * 71 * 3MM+464 * 62MM (it is recommended to open the hole according to the actual size) 6. Elevation range: the first elevation angle is 15 degrees, and the second elevation angle is 30 degrees 7. Control methods: physical buttons, remote control, RS485 8. Display screen: 1920 * 1080, 10 point capacitive touch, (back screen options include 7 inches, 10.1 inches, and 11.6 inches) 7 inch/10.1 inch back screen resolution: 1024 * 600, 11.6 inch back screen resolution: 1366 * 768 9. Display thickness: 8MM 10. Contrast: 700:1 11. Brightness: 300cd/m ² 12. Visual angle: 89/89/89/89 13. Panel buttons: Up, Pause, Down, Switch, Host Switch, USB 14. Chassis interface: power input, power output, HDMI input, VGA input, host switch, touch, data, central control 485 interface 15. Input voltage: AC 220V |
| Install Caution: 1.Mounting surface should be clean, dust-free and level. 2.When the environment temperature is below 10 degrees, please heat the stickup material lighter to increase viscosity. 3.If you want to move the socket, please move the foot front and behind. Do not pull the socket up and down vigorously! 4.Do not pour water into the socket. Input voltage:110-220V/50HZ.Grounding. Product Feature 1.These sockets are combined by various function keys we produced. They can be customized according to project or operation place. There are universal, American, British, European, French, Italian, South Africa, Danish power. And weak functions have phone, network, HDMI,VGA, USB,USB Charge, audio, video and so on. 2.The part of aluminum can make different surface treatment according to customer's requirements, such as drawing oxidation, ALUMINUN SHELL, electrophoresis. The normal color is silver. Other colors can also be customized. 3.The length of products is decided by your demand. 4.It is very convenient to install this product. Ith import paste technology, you can install them in every space of the desk steadily. And it does not affect usage after you move them. 5.This product is easy to outgoing line. You can outgoing line by using the outlet hole of desk or along the table side. It reduce trouble of opening holes. Hotels and private residence can buy and use products directly. |
