Pet/PLA Single Screw Sheet Extruder / Plastic Sheet Extruding Machine / Plastic Sheet Extruder Pet Sheet Thickness 0.2-2mm

Product Description

I. Application & parapeter
- Use in producing PET/PLA sheets, available for production of recycle material, high capacity, low energy consumption, good sheet forming.
- The screw to the modular structure, multiple portfolio, widely use.
- Extruder equipped with melt pump for quantitative & steady pressure output, and set up the pressure and speed closed loop auto control.
- PLC control,automatic functions for parameter setting, data and the feedback operation, the alarm.

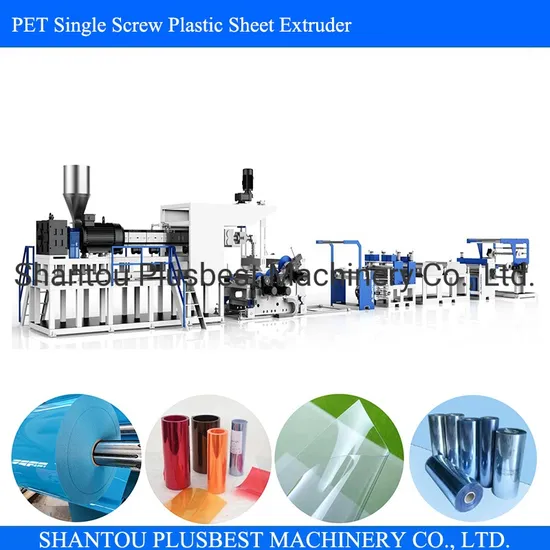

II. Machine Picture
III. Techanical Data

Mode No.	PET105-1000	PET105/65-1000	PET120/65-1200
Sheet Layer	A	ABA	ABA
Available Material	APET,PETG,RPET
Sheet Thickness(mm)	0.2-2.0
Max. Sheet Width(mm)	800	800	1000
Diameter of Screw(mm)	Φ105	Φ105/Φ65	Φ120/Φ65
Capacity(kg/h)	400	600	700
Total Power(kw)	200	300	360
Dimension(m)	25*4*5	25*4.8*5	28*5*5

IV.About Us
PLUSBEST is a professional machinery enterprise, supplier, importer and exporter located in SHANTOU CITY OF China.
As the professional machinery enterprise, we our team have already been working in this field for more than decade, focusing on PLASTIC PACKAGING MACHINERY, such as Plastic Sheet Extruder, Thermoforming Machine, Vacuum Forming Machine, Offset Printing Machine, Drinking Straw Machinery, Film Blowing Machine, Auxiliary, Mould etc. They are widely used in multi-industry of food, pharmacy, toys, chemical fertilizer, health care, electronic or hardware etc.
We PLUSBEST MACHINERY have been enjoying a great reputation. So far our overseas business has been reached to Europe, South America, North America, Oceania, Africa, Middle East and Southeast Asia. High quality and service by heart make more and more partners working with us for bright future.
With both skillful export experience and professional equipment knowledge, we all PLUSBEST people are always to provide better service and innovating technology support, as well as new products introduction for customers all over the world.
Warmly welcome home and abroad friends to visit PLUSBEST.

---
