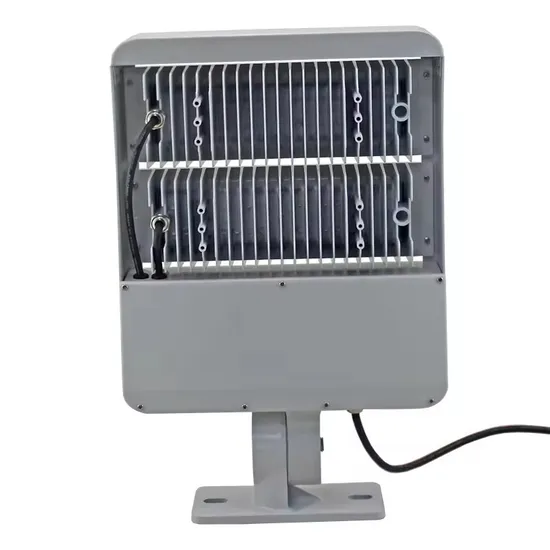

200W LED Street Light Module Detachable Split Aluminum Housing IP66 UL AC Power

Product Description

Street Light / Solar Street Light
ML50-300W KEY FEATURES LED Street lamp ML50/80/100/120/150/200/250/300W Module design,independent connection,easy to divide and combine 160 degrees adjustable angle Die-cast aluminum, housing with fins cooling design,low temperature,long life High transmittance,high quality tempered glass, Lumen:>130 lm / W, lifespan > 50000 hours All cables with rubber tubes ,copper core .excellent electrical properties Waterproof: IP66, Warranty 3/5 years TECHNICAL SPECIFICATIONS

Model No.	ML-50W	ML-80W	ML-100W	ML-120W	ML-150W	ML-200W	ML-250W	ML-300W
Rated Power	50W	80W	100W	120W	150W	200W	250W	300W
Alternating Current	1.8A/115VAC ; 1.2A/230VAC ; 1.0A/305VAC
Input Voltage	AC85-277V or 12/24VDC			AC85-277V
Frequency	50-60Hz
Power Factor	>0.96
THD	THD<10% (@electrical load>=50%/115VC, 230VAC; @electrical load>=75%/277VAC)
LED	SMD3030 Chip
Chip Quantity	60PCS*1	60PCS*2		60PCS*3		60PCS*4	60PCS*5	60PCS*6
LED Driver	CE standard driver
Driver Quantity	1						2
Structure	Detachable modular, fins cooling design
Lamp efficiency	≥ 130lm/W
CRI	Ra ≥ 80
Color Temperature	2700-6500K
Material	Aluminumm+Toughened glass
Beam angle	160 degree
Surge Protection	4KV
Working temperature	-60ºC ~ +50 ºC
IP Rating	IP66
Installation DIA	Φ65mm
Certificate	CE,ROHS,EMC,ISO9001
Warranty	3/5 years
Product size (mm)	450*285*80	540*285*80		630*285*80		720*285*80	820*285*80	900*285*80
Packaging size(mm )	455*300*120	545*300*120		630*300*120		725*300*120	820*300*120	910*300*120
CTN KG	3.07	4.1		5		6	7.5	8.3
