Product Description
Product Description

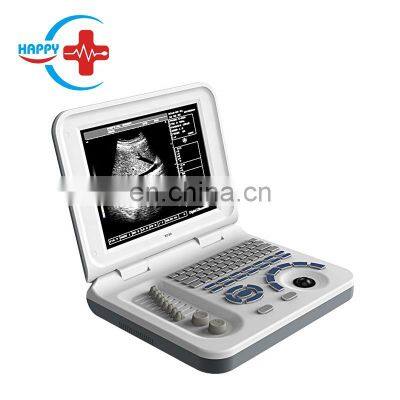

HC-A006 Full digital USB ultrasound Laptop PC system
Trade assurance
Features for ultrasound laptop:
I Specification:
Model
| HC-A006 Notebook LED Digital Ultrasound Scanner
|
Display mode
| B;B/B;4B;B +M;M
|
Display size
| 10.4inch LED displayer
|
Image multiplying factor
| 3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)
|
E-zoom:
| Magnify 2 times of real time image
|
Dynamic range
| 0~120db adjustable
|
Focus position
| Dynamic electron focusing
|
Image proessing
| 8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
|
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
|
Gray scale
| 256 levels
|
Frequency conversion
| 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion
Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
|
Measuring function
| Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
|
Annotation function:
| Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
|
Puncture guide
| 3.5MHz convex array probe can display punture guide in B mode
|
Gain control
| 8segments TGC and overall gain can be adjusted respectively
|
Image polarity
| Left and right flip; up and down flip
|
Capacity cine loop
| Real time display 256 consecutive images which are moemorized successively
|
Image playback
| Series playback or check one by one
|
Permanent storage
| 128 images
|
Output interface
| USB port
|
Standard configuration
| Ultrasound machine with 3.5Mhz convex array probe and power adapter
|
II.Standard Configuration:
1.One host machine
2.One convex array probe:F=3.5MHZ
3.One power adapter
4.11.1 V 2500MAH Li battery
5.USB port.
Other parameters:
Designation
| Performance
|
Displayer
| 10.4 inch LCD color display
|
Perimeter and area measured deviation (%)
| ≤±20%
|
The battery pack works continuously
| ≥1 hour
|
Input power
| AC220V±22V,1.5A
|
Gross weight
| about 3.62 kg
|
Host weight
| about 2.67 kg
|
Host appearance size
| 300×245×60 (length × width × height)(mm3)
|
The outer packing size
| 365×255×70 (length × width × height)(mm3)
|
Pictures for ultrasound laptop:
Packaging & Shipping
Company Information
Our Services
FAQ
1. How to place order of ultrasound laptop ?A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For ultrasound laptop product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our ultrasound laptop , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For ultrasound laptop , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For ultrasound laptop , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
>>
