Basic Info.
Certification
CE, ISO13485
LCD Display
With LCD Display
Model Number
Mxled700/500
After-Sale Service
Free Spare Parts
Place of Origin
Shandong, China
Average Bulb Life (H)
Greater Than or Equal to 60000
Optimum Mounting Height (mm)
2800-3000
Transport Package
Wooden Box
Production Capacity
50000PCS/Year
Product Description
Product Specifications

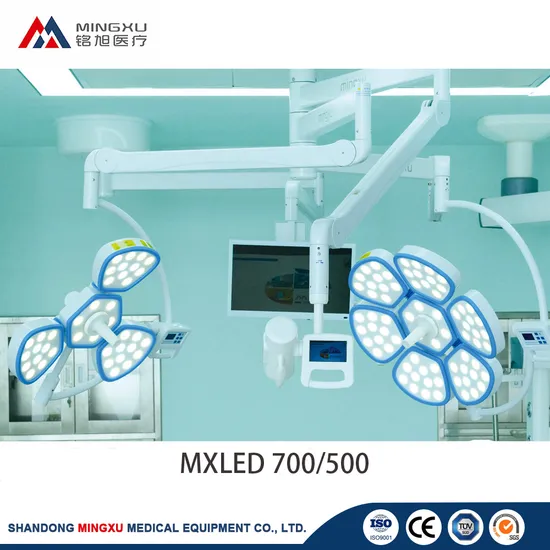

Lamp head model | MXLED 700 | MXLED500 |
Number of lamp beads | 72 | 39 |
Center Illuminance(LUX) | 130000-160000 ( adjustable) | 100000-130000 (adjustable) |
Color Temperature(K) | 4300±500 ( adjustable) | 4300±500 ( adjustable) |
Color Rendering Index (Ra) | ≥95% | ≥95% |
Spot distribution diameter(mm) | 80-150 | 80-150 |
Spot diameter (mm) | 160-300 | 160-300 |
Light beam depth (mm) | ≥1200 | ≥1200 |
Irradiance(W/m2) | ≤600 | ≤600 |
Head temperature rise(ºC) | ≤1 | ≤1 |
Temperature rise in the surgical working area | ≤2 | ≤2 |
Operating radius(mm) | ≥2200 | ≥2200 |
Working radius(mm) | 600-1800 | 600-1800 |
Supply voltage | 220V±22V 50HZ±1HZ | 220V±22V 50HZ±1HZ |
Input Power | 150VA | 150VA |
Average life of lamp(h) | ≥60000 | ≥60000 |
Lamp power | 1W | 1W |
Optimum installation height(mm) | 2800-3000 | 2800-3000 |
Product Configuration List
Number | Name | Quantity | Remark |
1 | Base | 1 | |
2 | Cross arm | 2 | |
3 | 360° Balance Arm | 2 | |
4 | Lamp holder | 2 | |
5 | lamp holder lamp beads | 111 | |
6 | Handle | 2 | 2 extra |
7 | Hexagon wrench s=3,s=4,s=5,s=6,s=8 | 1 each | |
8 | Small flat screwdriver | 1 | |
9 | Phillips screwdriver | 1 | |
10 | Certificate | 1 | |
11 | User Manual | 1 | |
12 | Product warranty card | 1 | |
FAQ 1. What is the service life of LED surgical shadowless lamp?
The average life of LED bulbs used in LED surgical shadowless lamps is up to 60,000 hours.
2. How to choose LED surgical shadowless lamp?
- Clarify the specific requirements of the operating room for the shadowless lamp, including requirements in terms of brightness, light color, adjustment flexibility, and ease of use.
- Understand the basic characteristics of LED surgical shadowless lamps, such as high efficiency, long life, and low energy consumption.
- Inspect the brightness and light color to ensure that the brightness of the LED surgical shadowless lamp is high enough to meet the needs of clear observation during surgery.
- Evaluate the adjustment flexibility and ease of use, and check whether the LED surgical shadowless lamp can flexibly adjust the angle and height of the lamp head.
3. What are the maintenance tasks of LED surgical shadowless lamps?
- Regularly check the connection status of each connection part of the surgical shadowless lamp every year to prevent accidents caused by loosening of various parts of the shadowless lamp.
- Tighten the power cord connector at the input and output of the control box and the screws at each connection.
- Adjust the rotation limit of the LED surgical shadowless lamp, the working voltage of the bulb, and the brakes of each joint.
- Check the verticality of the suspension tube and the balance of the suspension system.
- The power supply needs to be cut off after each operation.
- Daily fault repairs must be performed by regular maintenance personnel.
4. What should I do if the LED surgical shadowless lamp fails?
- If the main light is not on and the auxiliary light is on, the main light may be damaged. The main light bulb should be replaced immediately.
- If the light is not on, check whether the fuse is blown and whether the power supply voltage is normal. If both are fine, please ask a professional to repair it.
- For problems such as transformer damage, frequent fuse damage, and deformation of the disinfection handle, professionals should also be asked to repair it.
>>
