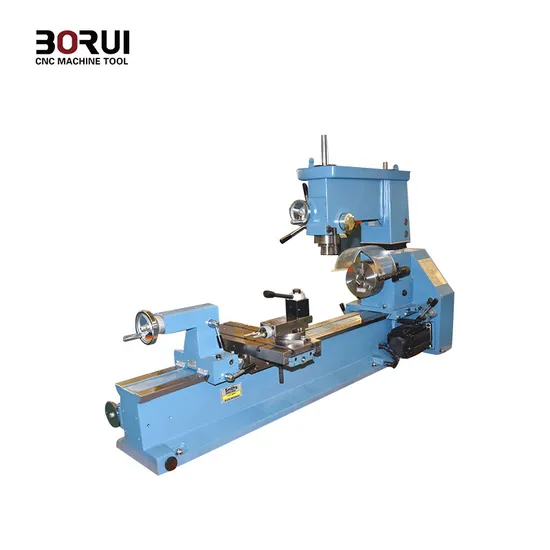

China Multi Tool Lathe Drilling Milling Lathe Price (G1324)

Product Description

China multi tool lathe drilling milling lathe price (G1324)
Product Application
*Has the purposes of turning, drilling, milling, boring & thread-cutting
*DC brushless motor, big torque at low speed, infinitely variable speed
*Power-driven for table in milling
*Cam clamping chuck
*Lengthened table
The main specification :

SPECIFICATIONS	G1324		G1340
Swing diameter over bed	330mm	13"	330mm	13"
Swing diameter over table	190mm	7.5"	190mm	7.5"
Distance between centers	610mm	24"	1000mm	40"
Spindle bore	28mm	1.1"	28mm	1.1"
Spindle speed (infinitely)	50-3000r/min		50-3000r/min
Longitudinal stoke	510mm	20"	890mm	35"
Cross stoke	185mm	7.3"	185mm	7.3"
Small toolpost stroke	70mm	2.75"	70mm	2.75"
Metric pitch/grade	0.35-6.5mm /24		0.35-6.5mm /24
Inch pitch/grade	7-52T.P.I/21		7-52T.P.I/21
Longitudinal feed/grade	0.067-0.5mm/r/21		0.067-0.5mm/r/21
Cross feed/grade	0.021-0.157mm/r/21		0.021-0.157mm/r/21
Milling-drilling spindle taper	MT3	R8	MT3	R8
Milling-drilling shaft stroke	127mm	5"	127mm	5"
Milling-drilling box stroke	110mm	4.33"	110mm	4.33"
Table size	450x170mm	17.7"x6.7"	450x170mm	17.7"x6.7"
Drilling dia.	24mm	0.95"	24mm	0.95"
Power of motor	1.1KW		1.1KW
N.W./G.W.	300/350kg		300/380kg
Overall Dimensions of machine(L*W*H)	1325x585x1030mm		1705x585x1030mm
Case dimensions of machine(L*W*H)	1260x570x1100mm		1640x570x1100mm
Case dimensions of stand(L*W*H)	left:760x450x410,right:760x 450x350mm		left:760x450x410,right:760x 450x350mm

Standard Accessories:
1.Three-jaw chucks
2.drilling chuck
3.drill taper stock
4.center, drawing bar
5. exchange gearOptional Accessories :
1.Stand
2.steady rest
3. follow rest
4. milling chuck
5.milling cutter
6. live center, etc.
The main Features:
*Has the devices of safety interlock & an overload safety
*Lengthened drilling/milling box, 360 degree rotation in vertical plane
Product Details
Packing Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
Our Service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
