High Precision CNC Machine Vmc850 Vertical Machining Center/CNC Milling Machine for Sale

Product Description

Product Description

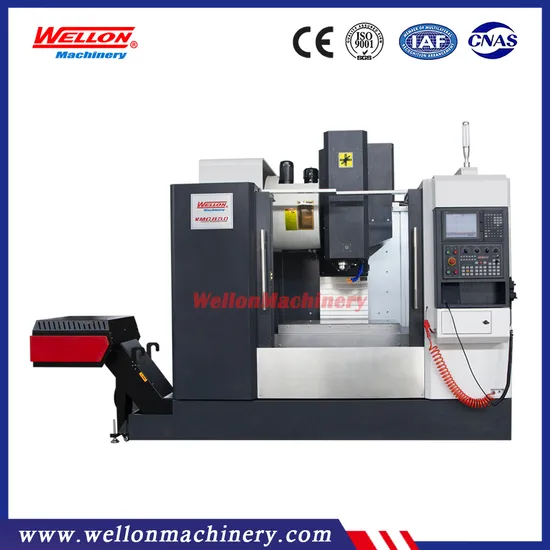

CNC Machine Tools Vmc850 Vertical Machining Center for Sale

Detailed Photos
Product Parameters
Main configuration & accessories:
1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Taiwan production pneumatic cylinder;
4. Taiwan ATC, carousel type and disc type are available as option;
5. Headstock balancing system have heavy casting or nitrogen balance system as option;
6. Full enclosed cover;
7. Rigid tapping;
8. Work lamp;
9. USB and Internet interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;
Technical Parameter:

Item	Unit	VMC850
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	500
Spindle nose to worktable	mm	150-650
Spindle center to column	mm	550
Leadscrew diameter X,Y,Z	mm	Φ40
Linear guideway width X,Y,Z	mm	35/35/35(Roller)
Worktable Length	mm	1000
Worktable width	mm	500
Max loading capacity	kg	500
T-slots(NO./width/pitch)		5*18*90
Spindle taper		BT40-150
Spindle speed	rpm	8000
Main motor power	kw	7.5/11
Fast moving speed (X/Y/Z)	m/min	36/36/30
Cutting speed	mm/min	1-10000
Feed motor torque	N/M	12/12/22
Feed motor power	kw	2.0/2.0/3.0
Capacity	pcs	Arm type 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Length	mm	3000
Width	mm	2300
Height	mm	2900
Weight	kg	4500

Standard accessories:
Fanuc 0i-MF(5) CNC control system
High speed spindle 8000rpm from Taiwan
24 tools ATC from Taiwan
3-Axis linear guideway from Taiwan
Full-cover protection
Tri-color indication lamp
Heat exchanger in cabinet
Movable pulse generator
Coolant system
Auto-lubrication
Work lamp
Air gun
Company Profile
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,
Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
