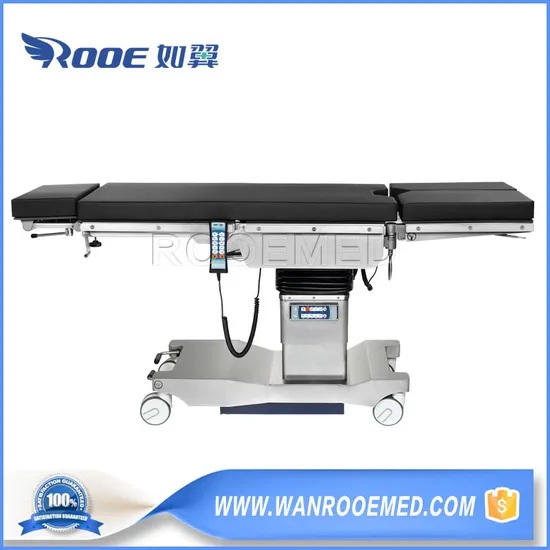

304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table

Product Description

AOT800 304 Stainless Steel 550mm Low Position Operation Room Surgical Electric Hydraulic Operating Table General features:
1. Modular design desktop, suitable for various surgical disciplines. Detachable back and legs for quick attachment and positioning. 2. Easy click connection design, for different requirements of the operating table to provide convenient, safe, intuitive modular installation scheme. Lightweight modular components can be quickly and easily fitted and changed to suit surgical needs. 3. The stainless steel base and column housing are made of stainless steel and the surfaces are treated with the most advanced procedures to ensure longer table life and higher resistance to antibacterial products.
4. The panel is made of high strength transparent board, which is very convenient for ray observation.
5. Can be moved on four extremely smooth wheels and can be easily used in a narrow room.
6. Manual controller is equipped with safety lock to avoid accidental movement of the table. The controller is equipped with an LCD screen, which can accurately display the action instructions during operation.
7. It is a multi-functional operating table, which can meet the needs of thoracic surgery, renal surgery, gallbladder surgery, endoscopic surgery, gynecological surgery, ent surgery and other operations.
Modular design benefits:
1. Higher imaging quality, the best stability to meet more endoscopic surgery
2. Module identification system, color coding indicator technology and intelligent collision protection system enhance patient safety
3. Easy to use, easy to move, improve operating room efficiency
Technical Features:
1. The longitudinal slide can reach 310mm, and the C-arm can be freely entered without patient reduction
2. Extreme weight load capacity of 350 kg, with the highest safety and stability
3. The extremely high and low positions are not only suitable for various operations, but also for the comfortable work of doctors.
4. Dual control system. It can be controlled by hand remote control, and can also be operated by the supercontrol panel on the column in case of emergency. (e.g. Flex, Reflex ,0- position or foot locking).
5. The elevation of renal bridge is controlled by manual handle.
6. One-button reset function, just one button can restore the operating table to the horizontal zero position;
Electrical characteristics:
1. Optional spare battery system, which can supply power to the workbench for several hours in case of power failure.

Model	AOT800
Operating Table Size
Length	≥2100mm
Width	≥550mm
Table Overall Adjustable Range
Min. height of table top from floor	≤550mm
Max. height of table top from floor	≥1050mm
Tendelenburg	≥35º
Reversed tendelenburg	≥35º
Lateral tilt	≥25º
Backward and forward movements	≥310mm
Flex	≥225º
Reflex	≤100º
Horizonal ratation of tabletop	without
Table Section Adjustment Range
Head section raised from the horizontal	≥40º
Head section lowered from the horizontal	≥90º
Head section flexible position	≥40º
Kidney bridge elevated	≥120mm
Back section raised from the horizontal	≥80º
Back section lowered from the horizontal	≥45º
Electric Leg section raised from the horizontal	≥80º
Electric/Manual Leg section lowered from the horizontal	≥90º
Foot board can be horizontal or vertical with leg board.
Power Supply	AC 220V±10%,50Hz
Basic Accessories:	Anaesthetic screen: 1 set
	Arm support: 1 pair
	Body support: 1 pair
	leg support: 1 pair
	Shoulder Rest: 1pair
	Foot plate: 1 pair
	Cushion: 1 set
	Manual controller: 1 pc
	Kidney bridge handle: 1 pc
	Power cord: 1 pc
