Product Details
Product Description
Product Description

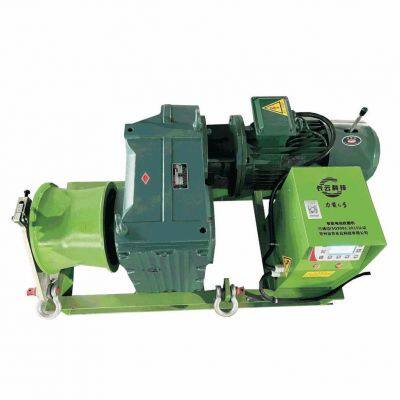

Product Name: Lijian 6 Cable Winch
Model: Lijian 6
Product Features:
Superior Pulling Force: Maximum pulling force of 60KN, suitable for ultra-high-intensity job requirements.
Efficient Operation: Speed of 0-20m/min, equipped with a 7.5kw high-quality copper-core motor, ensuring stable operation with strong pulling force and high speed.
Intelligent Control: Supports control panel and remote control operation, with stepless speed adjustment for flexible and convenient operation.
Safety Protection: Motor features automatic braking upon power failure, preventing accidents and ensuring job safety.
Durable Design: Reinforced drum is pressure-resistant, wear-resistant, and deformation-free; shaft drive is impact-resistant and vibration-resistant, with high transmission efficiency and no overheating or slipping.
Heavy-duty Gearbox: Reliable quality, long service life, and smooth operation without jamming, suitable for high-intensity working environments.
Multi-functional Operation: Supports 4 adjustable gears with a wide speed range, adaptable to various job scenarios.
Four-gear Stepless Speed Control: Start-stop at any time, offering flexible and precise operation.
Compact Design: Dimensions of 110x68x50cm, weight of 380kg, sturdy structure for easy transportation and installation.
Application Scenarios:
Suitable for ultra-high-intensity cable laying and traction in industries such as power, construction, and telecommunications.
Ideal for large-scale construction sites and high-intensity working environments.
Multi-functional operation modes adapt to various complex working conditions, improving job efficiency.
Technical Parameters:
Model: Lijian 6
Maximum Pulling Force: 60KN
Speed: 0-20m/min
Power: 7.5kw
Power Supply: AC380V
Speed Adjustment: Stepless speed control
Control Modes: Control panel + remote control
Motor Configuration: Automatic braking upon power failure
Dimensions: 110x68x50cm
Weight: 380kg
Product Advantages:
Superior pulling force, high speed, and stable operation, suitable for ultra-high-intensity job requirements.
Automatic braking upon power failure ensures job safety and prevents accidents.
Reinforced drum and shaft drive design are pressure-resistant, wear-resistant, impact-resistant, and vibration-resistant, extending equipment life.
Heavy-duty gearbox ensures reliable quality, smooth operation, and high transmission efficiency.
4 adjustable gears with a wide speed range, adaptable to various job scenarios, offering flexible and convenient operation.
Four-gear stepless speed control allows start-stop at any time, meeting precise job requirements.
Sturdy structure for easy transportation and installation, suitable for high-intensity working environments.
>>
