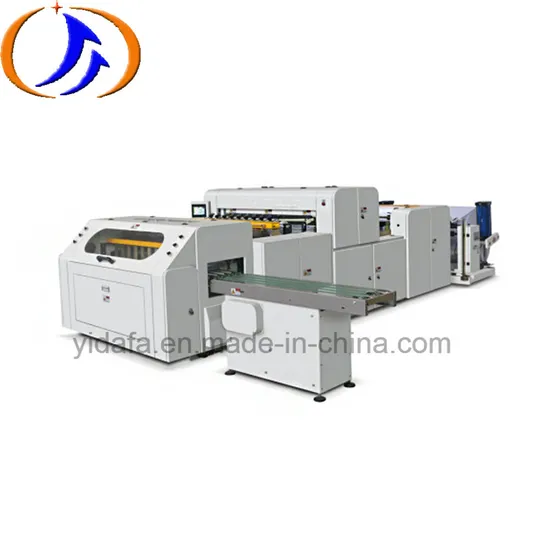

Fully Automatic A4 Paper, Copy Paper, Printing Paper, Writing Paper and Office Paper Cutting & Packaging Machine Production Line

Product Description

Machine Introduction
BUYING GUIDE: Under the purpose to give our clients best suggestions and recommend more suitable machine model. Please check the following information of a4 paper cutting machine and feedback us your idea, we can make accurate and best quotation completely according to your real requirement
1.What is the width of your feeding paper roll?
640mm? 850mm? 1060mm? 1270mm?
2.How many feeding rolls you want in the cutting machine?
Our machine can equip with 1 roll, 2 rolls, 4 rolls. it is up to your real production
capacity.
3.Could you please let us know how many reams you want for per minute?
1-2 reams/min? 3reams/min? 4-6reams? 10reams/min? 26reams/min?
4.Could you tell us which kind packaging material you will need?
In paper material or in plastic packaging material?
Machine Technical Parameters

Max unwinding diameter	φ1400mm
Max cut width	1100mm
Cutting length	20-400mm
Cutting speed	10-200times/min
Production capacity	3reams/min
Cutting precision	±0.2mm
Power	16Kw
Voltage	380V/220V x 50HZ
Dimension(L*W*H)	8800×2000×2000mm
Machine weight	4500kg

Production Flowchat PRODUCRT FEATURE:
1.Main engine frequency adjust speed,PLC touch screen control system,auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control , color code track etc function.
2.Feeding roll use auto loading system(150#cylinder), air shaft use 3#(74mm paper tube core)
3.Machine rack use 10mm thick cast iron steel plate with steel structure. Bottom of cutting knife use heavy casting structure, Guide rollers using static balanced aluminum alloy guide roller.
4.Traction drive fixed position use servo motor system, traction driver roller use steel structure. Feeding traction way is through motor move the chain wheel to drag the rubber roller. The receiving platform is normal automatic finished materials table, control by motor.
5.Our Machine is best jumbo roll cross cutting machine, it have high precision. High speed and receiving sheet paper flat.
Workshop and Machine Packaging
Company Profile
Yidafa company is a professional manufacturer of paper and plastic flexible packaging equipments. We focus on paper slitting machine, crosscutting machine, A4, A3size paper cutting machine, die-cutting machine and other equipments.
We also support customized machine which according to clients`special requirements.With high degree of automation and excellent quality and competitive price, our machines are popular with both home and abroad. Such line the Middle East, America, Africa, Southeast Asia,Europe and other countries and regions.
Our Advantages 1. The business contact on both sides will reply within 16 hours .
2. During warranty period, the company provide the relevant technical services for free,such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
3.After the expiration of the warranty, our company provide customers with a lifelong technical
service and spare parts with preferential price and efficient manner over a long period of time.
RFQ 1.How to install and maintain the machine?
Firstly, we will provide the installation guidance with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.

---
