Industrial Double Ribbon Mixer for Bulk Powder Agitation

Product Description

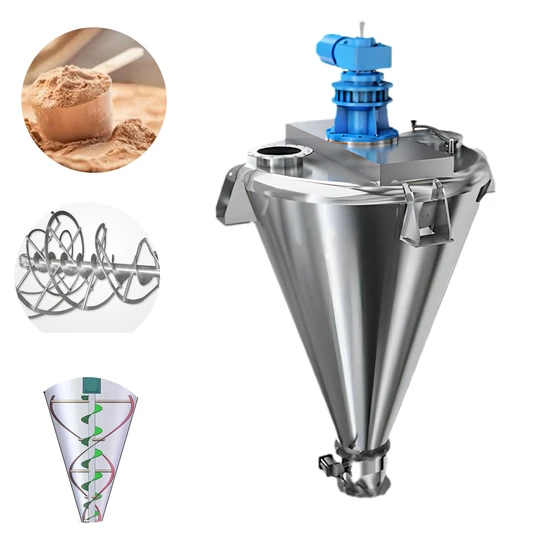

The Conical Screw Ribbon Mixers are the go-to equipment for the seamless mixing, stirring, and blending of powders, granular materials, slurries, or viscous substances. They can be tailored with a liquid spraying system and customized to function under vacuum, pressurized, heated, or cooled conditions, as per user specifications. This remarkable adaptability caters to the diverse mixing and stirring requirements of materials across various process environments.
The Conical Screw Ribbon Mixers excel in delivering robust mixing capabilities. During operation, materials adjacent to the container wall are driven upwards, while those at the center are directed downwards, ensuring a gentle yet thorough mixing of flowable materials. This dynamic action guarantees a high degree of uniform mixing for substantial quantities of materials in a remarkably short time. The outstanding design of the discharge mechanism ensures that material in the hopper is almost fully discharged, significantly minimizing material residue.
Exceptional Product Features
1. Cantilever Shaft Structure, with the bearing ends isolated from the material.
2. The minimal gap between the agitator blades and the container wall effectively prevents material adhesion .
3.
A standardized agitator drive box ensures reliable operation and reduces maintenance costs.
4. Easy-Cleaning : Engineered for quick and thorough cleaning between batches;
5. Durable Construction : Crafted with robust materials for long-term reliability;
6. Wide Application : Suitable for industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Equipment model	Total Volume (m³)	Loading Coefficient	Motor Power (kW)	Overall Dimensions (mm)	Equipment Weight (kg)
RX-DZH-0.06	0.06	0.4-0.6	1.5	φ630x1451	120
RX-DZH-0.1	0.1	0.4-0.6	2.2	φ715x1569	220
RX-DZH-0.3	0.3	0.4-0.6	2.2	φ920x1929	320
RX-DZH-0.5	0.5	0.4-0.6	4	φ1140x2327	410
RX-DZH-1	1	0.4-0.6	7.5	φ1480x2869	900
RX-DZH-1.5	1.5	0.4-0.6	11	φ1633x3140	1200
RX-DZH-2	2	0.4-0.6	11	φ1816x3489	1300
RX-DZH-3	3	0.4-0.6	15	φ2040x3760	2400
RX-DZH-4	4	0.4-0.6	18.5	φ2250x4425	2500
RX-DZH-6	6	0.4-0.6	22	φ2548x4940	2850
RX-DZH-8	8	0.4-0.6	30	φ2780x5360	4250
RX-DZH-10	10	0.4-0.6	37	φ3018x5815	5200
RX-DZH-12	12	0.4-0.6	45	φ3204x6100	5800
RX-DZH-15	15	0.4-0.6	55	φ3442x6540	6300

Detailed Product Display Innovative Product Structure Versatile Application
The Double Cone Mixer is applicable across various industries, includingpowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food sectors
.About Our Esteemed Company Shijiazhuang Rongxin Technology Co., Ltd.
was established in 2007, headquartered in Shijiazhuang, the capital of Hebei Province. Specializing inthe innovative design and provision of material handling automation systems, our company has earned a distinguished reputation in the field, securing numerous patents and accolades, such as 'National High-Tech Enterprise' and 'Innovative Enterprise.'
Presently, our core products include dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems, all of which are extensively utilized in the metal materials industry, food processing industry, chemical industry, pharmaceutical industry, and new energy sector.Moreover, we operate our own state-of-the-art production facility with mature manufacturing lines, ensuring the superior quality of our equipment. Company Certifications
