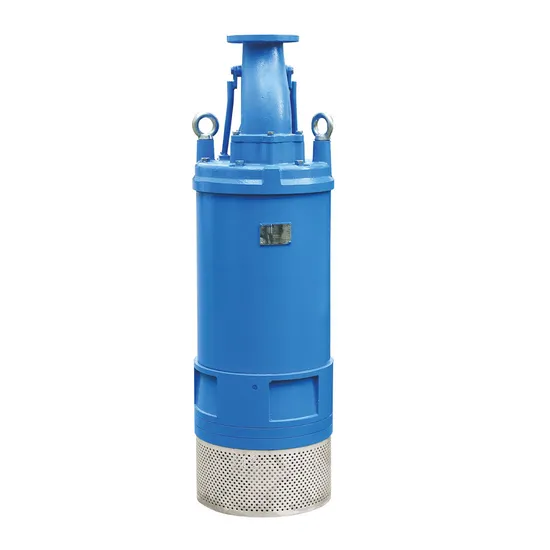

High Head Mining Pump 55kw 75kw Sh Meudy

Product Description

Submersible Dewatering Pump, Sewage Pump, Slurry Pump, Contractors' Pump
Characteristcs
The body of motor and pump is made of rigid cast iron for long-lasting durability.
Greatly increased maximum submersion depth due to double mechanical seal resistant to high pressure
Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed. Space economy by a top outlet.
Hermetically sealed motor equipped.
Discharge 150mm(6") to 200mm(8"),motor 55kW(75HP) to 75 kW (100HP)
Motor is dry type submersible induction motor (2 poles).
Specification
Capcity:up to 408 m3/h
Head: up to 132 meters
Power : 55kW(75HP) to 75 kW (100HP)
Supply voltage : Three Phase 400 V±10%, 50Hz 380 V±10%, 60Hz
Insulation class: F
Protection class: IP68
Cable Length :20m
Water temperature: up to 40ºC
Max. water depth: 30 m
Application
Deep-well pre-dewatering or high-head dewatering
Civil engineering and construction works Mines, quarries, coal ore & slurries
Sewage treatment plants General pumping purposes
Special features on request
Other voltages The length of cable is optional

"Exceed the satisfaction of our clients" is always our philosophy. Our plant occupied over more 30,000 square meters according to the standards of ISO9001 and equipped with advanced production lines. With more than 20 years' manufacturing experience we have developed a stringent system of on-line inspection. Products are constantly monitored during every phase of production using statistical process control. This method assures the highest quality standards comply with CE and NEMA standards. We are an energetic, innovative, and up to date enterprise. We welcome customers to visit our plant at any time that interested in cooperation with us.

---
