Beltwin Portable Conveyor Ep Rubber Belt Vulcanizing Press

Product Description

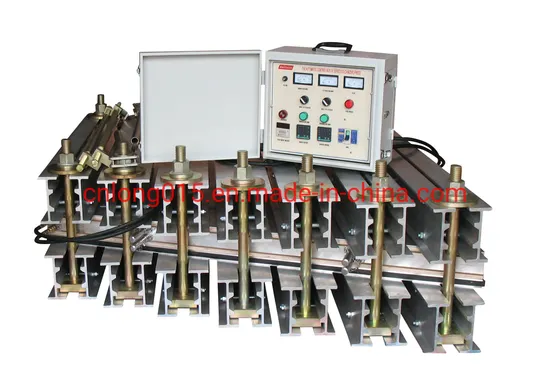

Machine Picture
What's DSLQ-S series and what it can do:
The DSLQ-S sectional has uniform pressure bag and aluminum/steel bolt and high grade aluminum platens and beams with restraining system set as standard. Such belt splicing system designed to be portable and easy to set-up and remove from the site. We can manufacture to all sizes and pressure up to 200 psi required for different fabric belts and steelcord belts.
Waterbag (also can use air pressure) Press for 100PSI, 200PSI etc. surface pressure for textile and steel cord belts, Up to 1.8Mpa.
100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting
Max Belt width: from 650mm to 3000mm
Different heating platen size and combination.
Degree of the heating platen: 22 degree bias angle or 17 degree, 20 degree, rectangle and other degree is optional.
Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V
Vulcanizing temperature:145ºC (adjustable 0~200ºC)
Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 50 min, accords to different conditions, actually, normal conditions, is around 25~30 mins.
Improved cooling system, when use pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)
Waterbag (also can use air pressure) Press for 100PSI, 200PSI etc. surface pressure for textile and steel cord belts, Up to 1.8Mpa.
100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting
Max Belt width: from 650mm to 3000mm
Different heating platen size and combination.
Contact Informations:
1. Name: John Sun

---
