China Low Price Wheat Maize Feed Corn Paddy Soybean Corn Wheat Storage Steel Grain Silos Manufacturers

Product Description

China Professional Manufacturer for Galvanized Grain storage Steel Silo
For Maize Wheat soybean soymeal Paddy Corn Grain Feed processing Mills Product Description
Grain steel silo, in another name is Galvanized storage silo or steel grain storage silos, which is used for farm purpose, rice mill, flour mill, soybean-oil mill, animal feed mill plant, brewery plant and so on, the corn maize steel grain storage silo can be used to store grain (such as corn, maize, bulk wheat, corn, rice, paddy, sorghum, soya etc.), animal feed, cereal seeds, plastic pellet, wooden pellet etc.
Fabricated steel silo - Cone bottom type
Galvanized corrugated steel bottom silo is an advanced grain storage equipment . Its foundation is mainly made of brick , cement ( rubble ) masonry
Product peculiarity:
1. Large diameter, large warehouse capacity; Light weight, low foundation requirements, simple foundation construction.2. Fully mechanized entry and exit warehouse and intelligent management can be realized according to requirements.3. Equipped with sound ventilation, temperature measurement, humidity measurement and other safe grain storage systems.4. High degree of standardization: according to domestic high-quality materials or imported materials, standardized and serialized production is used to make standard parts and components with strong versatility.5. Simple and quick installation: all parts of the prefabricated galvanized steel warehouse are made in the factory and are connected by bolts on site; Construction is mobile and flexible.6. Easy maintenance: This warehouse type is easy to disassemble and can be moved; Local plate damage can be replaced, thus extending the service life.

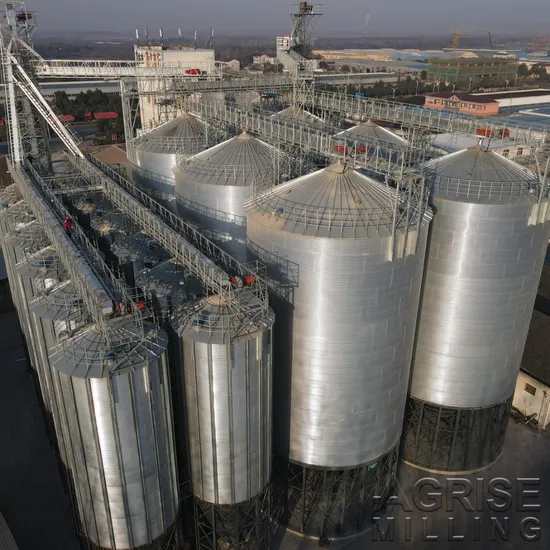

Detailed Photos
Grain Steel Silo Production Process


Product Parameters

Popular Hopper Bottom Steel Silo Technical Specifications
Capacity	50Ton	100Ton	150Ton	200Ton	300Ton	500Ton	1000Ton	1500Ton
Model	TCZK 03605	TCZK 04507	TCZK 05507	TCZK 06406	TCZK 07307	TCZK 07313	TCZK 11010	TCZK 12811
Diameter(m)	3.667	4.584	5.500	6.417	7.334	7.334	11.000	12.834
Total Height(m)	9.56	12.53	13.25	12.85	14.70	21.42	20.95	23.51
Volume(m³) Density:0.75ton/m³	69	150	222	273	415	699	1346	2039

Popular Flat Bottom Steel Silo Technical Specifications
Capacity	1000Ton	1500Ton	2000Ton	2500Ton	3000Ton	5000Ton	8000Ton	10000Ton
Model	TCK 10014	TCK 11915	TCK 13715	TCK 15514	TCK 15518	TCK 18321	TCK 24718	TCK 25621
Diameter(m)	10.084	11.918	13.750	15.584	15.584	18.334	24.751	25.668
Total Height(m)	18.69	20.34	20.87	20.30	24.78	28.60	26.99	30.60
Volume(m³) Density: 0.75ton/m³	1335	2009	2701	2467	4145	6693	10879	13484
