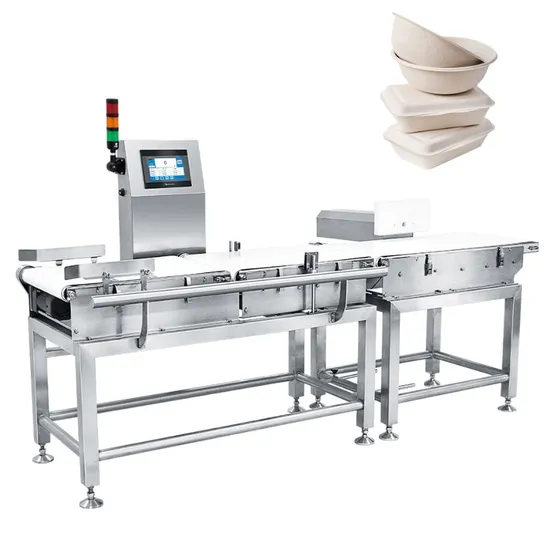

Fish Chicken Meat Production Industry Check Weigher with Rejector

Product Description

Product Description APPLICABLE: Applicable to the weight of large weight, large volume of items,for the whoole box whether the items are missing,missing parts,small amount, excessive weight.Such as mine,Spring water is short of quantity in the whole box, biscuits are short of boxes in bread,snacks are short of whole box boxes,bags,etc.
Detailed Photos
Scope of application: This product is suitable for testing whether the weight of a single product is qualified, and is widely used in electronics, pharmaceuticals, food, beverages, health care products, daily chemicals, light industry, agricultural and sideline products and other industries. Such as cosmetics for daily chemical products (including beauty cosmetics, cleaning, cosmetics, skin care products, hair cosmetics, etc.); washing products (including soap, washing powder, detergent, etc.); oral products (including toothpaste, mouthwash, etc.); Other chemical products (including shoe polish, floor wax, deodorant, insect repellent, etc.).

Model	CQ-XP1010	CQ-XP210	CQ-XP300	CQ-XP400	CQ-XP500	CQ-XP600
Weighing range	200g	1000g	3000g	15kgs	40kgs	50kgs
Weighing accuracy	±0.05g-±0.1g	±0.3g-±1g	±0.5g-±2g	±2g-±10g	±5g-±15g	±8g-±20g
Display resolution	0.01g	0.1g	0.1g	1g	1g	5g
Conveyor speed	20-60m/min	30-100m/min	30-90m/min	30-70m/min	20-35m/min	15-25m/min
Sorting speed	180pieces/min	160pieces/min	80pieces/min	70pieces/min	30pieces/min	30pieces/min
Belt height	700mm±30mm	700mm±30mm	700mm±30mm	700mm±30mm	700mm±30mm	700mm±30mm
Infeed part	250(L)*120(W)mm	400(L)*210(W)mm	450(L)*300(W)mm	620(L)*400(W)mm	-	-
Weighing part	250(L)*120(W)mm	400(L)*210(W)mm	450(L)*300(W)mm	620(L)*400(W)mm	900(L)*500(W)mm	1200(L)*600(W)mm
Rejection part	400(L)*120(W)mm	700(L)*210(W)mm	900(L)*300(W)mm	900(L)*400(W)mm	900(L)*500(W)mm	935(L)*600(W)mm

Model	CQ-XP400 Large Weight and Volume Items online weighing machine
The size of the weighing	L620mm*W400mm
Weighting range	20g-20kg
Highest check accuracy	±2g~±10g
Minimum scale	1g
Maximum speed	60pcs/min
Weigh material size	L450mm*W390mm
Dimensions	L2140mm*W1110mm*H1231mm
Rejection device	blow ,push,swing arm
Power supply	AC 110/220V±10% 50-60Hz
Machine weight	About 200KG

Company Profile
Function and structure characteristics of check weigher 1. apply advanced digital signal processing and realize high speed and stable weighing. 2. with liquid crystal and tangibly screen, it is easy to operate. 3. self-diagnosis function, when Rom/Ram, A/D light electric tube. 4.Belt disassembling without tools, which is easier to clean 5.Automatic stop by sound and light .air blast. or penumatic push rod emergency stop button for safety working condition(according to customers choosing) 6.Solid SUS304 stainless steel structure enable for good performance

---
