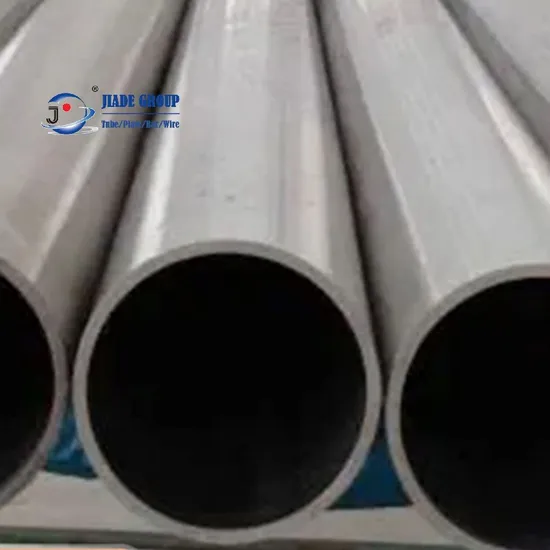

Grade 5 Titanium Tubes and Exhaust Tubing Suppliers in China

Product Description

Product Parameters
Ti6Al4V Gr5 Seamless Tube and ASTM B338 Grade 2 Titanium Tube supplier Titanium and its alloys are metals that can be used in extremely high temperatures. Specification ASTM B338 covers about 28 grades of titanium alloys. The Titanium Tubing enveloped by this specification concerns heat exchangers, surface condensers and evaporators. Since heat exchangers are involved in high temperature applications, the use of a Titanium Heat Exchanger Tube will ensure the longevity of the product with an excellent performance. The construction of these components could be either seamless or they could be constructed as Titanium Welded Tubes.
Keeping in accordance with ASTM B338, the production of a seamless tube is to be by a hollow billet. The processes such as cold reducing or cold drawing are used for the manufacture of Titanium Seamless Tube. On the other hand, a welded construction involves the use of an automatic arc weld process. Firstly, the welded ASTM B338 Tube is to be adequately cold worked to its last size. Cold working is what transforms the cast weld microstructure of the welded Titanium Tube into a conventional equiaxed microstructure in the weld are upon the use of a succeeding heat treatment. The testing of welded Titanium Exhaust Tubes includes an ultrasonic test along with a non-destructive electromagnetic test method. Whereas the testing of seamless constructed Titanium Condenser Tubes requires an ultrasonic test method.
Manufacturer and supplier of ASME SB 338 Titanium Tubing in form of Coil Tubing, Condenser Tubes, Oval Tube and Rectangular Tubing, Check online inventory
Titanium TubeTitanium Grade 5 TubingASTM B338 Grade 2 Titanium Seamless Tube Table of contents Titanium Tube Size Chart Titanium Tubing Standard Specification Grade 2 Titanium Seamless Tube Specification Titanium Grade 5 Tubing test procedure involves Grade 5 Titanium Tube Price in China Types of Titanium Tube Complete range of Titanium Grade 2 Tubes Ti Alloy Cp Grade 2 Boiler Tube Maximum Temperature Limit Titanium Metal Gr 5 Tube Coating Services Ti-6al-4v Titanium Square Tube size and weight ASTM B338 Titanium Alloy Capillary Tube Size Chart Ti Metal Gr 2 Exhaust Tubing Gauge Thickness Commercially Pure Titanium Welded Tube Tolerances Ti-6AL-4V ELI Titanium Round Tube Other Facilities we offer Titanium Cp Grade 5 Seamless Tube Chemical Compatibility CP Titanium Tube Mechanical Properties Titanium Alloy Grade 5 Tube Equivalent Material Grade Titanium Tube Size Chart Wide stock of Grade 5 Titanium Tubes and Exhaust Tubing suppliers in China, also view Ti Grade 2 Tube price list
Titanium Seamless Tube Size (OD): .375" through 1" OD Wall Thickness : .035" through .065" Titanium Tubing Standard Specification Manufacturer and exporter of U Shaped and Straight Titanium Tube in all sizes and wall thickness in China GRADE SPECIFICATIONS

Sizes: Tube and Tubing Full Range of sizes in all grades
	Ti CP-GRADE 2,3,4	AMS-4941, 4942, BMS-7-21, DMS-1872, 1874, 1898
	3AL-2.5V	AMS-4944, 4943, 4945, DMS-2241, B50TF35, PWA-1260
Titanium Tubing Specifications: AMS 4935, DMS 1650, MIL-T 9047, MIL-T 81556, MMS 1202, AIMS 03-18-011, AMS 4975 (chemistry only)

Grade 2 Titanium Seamless Tube Specification ASTM B338 Seamless Tube available in 1.5 Od for aerospace industry, Small and Large Diameter Ti-6AL-4V ELI Titanium Tubes suppliers in China

Titanium Tube International Specification	ASTM B338 Grade 1 ASTM B338 Grade 2 ASTM B338 Grade 5 ASTM B338 Grade 9 ASTM B338 Grade 12
Grades	6AL-4V 6AL-6V-2SN 6AL-2SN-4ZR 2MO Commercially pure titanium
Standard Specification of Titanium Tubing	ASTM, ASME, DIN, SAE, DS, EN, AISI, JIS, DTD, TOCT, NF, AMS, GB
Grade 2 Titanium Tube Standard Tolerances	+/- 0.030; tolerance may vary depending on grade and thickness
Titanium Seamless Tube Size	15 NB to 150 NB IN 1/2" OD - 12" OD
Grade 2 Titanium Welded Tube Size	1/2" OD - 12" OD Guage: 25 SWG - 10 SWG
ASTM B338 Titanium Alloy Tube Length	Upto 30 meters, Single Random, Double Random & Required Length End: Plain End, Beveled End, Treaded, or Custom Cut Lengths
Titanium Grade 2 Tube WT	0.40 mm - 12.70 mm
Titanium Grade 5 Tube Schedule	5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Grade 5 Titanium Tube Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Ti Alloy Cp Grade 2 Tubes manufacturing techniques	LSAW, CEW, Seam-Welded, Fabricated, ERW, EFW, DOM, Seamless, Welded, Redrawn, CDW
Origin of Titanium Metal Gr 5 Tube material	Indian, European, Korean, Japanese
Ti-6al-4v Titanium Tube End Types	BLE : Bevel large end TOE / POE = Treaded One End / Plain One End BE : Bevelled end BBE : Bevel both ends BSE : Bevel small end POE / BOE = Plain One End / Bevelled One End TOE / BOE = Treaded One End / Bevelled One End PBE = Plain Both Ends TBE = Treaded Both Ends
Titanium Grade 2 Tube End Finish	low-burr, burr-free, brushed, trovalised
Ti Alloy Cp Grade 2 Tubes Form	Round, Square, Oval, Rectangular, Coil, "U" Shape, Hydraulic & Honed Tubes
Ti Metal Gr 2 Tube Delivery Condition	Welded, calibrated Welded and redrawn Seamlessly drawn Polished Annealed and Pickled Hot Finished Bright Annealed Cold Drawn
Commercially Pure Titanium Tube Packing	Ply Wooden Boxes PE Fabric Bundles Steel Strips Bundled Standard seaworthy export packing Plastic Bags, or as required
Ti-6AL-4V ELI Titanium Tube Value Added Services	Cut to size, thread, and groove
Port	Tianjin, China
Stocking distributor of leading Titanium Tube manufacturers	Sanyo Special Steel, Japan make Titanium Tube Schoeller Bleckmann, Austria make Grade 2 Titanium Seamless Tube Nippon Steel Corporation, Japan make Titanium Grade 5 Tube Sumitomo Metals, Japan make Grade 5 Titanium Tubes Seah Steel Corporation, Korea make Titanium Grade 2 Seamless Tube Kobe Special Tube, Japan make Ti Alloy Cp Grade 2 Tubing Tubacex Tubos Inoxidables S.A., Spain make Titanium Metal Gr 5 Tubes
Ti-6AL-4V ELI Titanium Tube Dimensional Specification	ANSI/ ASME B36.10, B36.19, B2.1
Marking on Titanium Cp Grade 5 Tube	Specification Material Grade Nominal Size Schedule or Wall Thickness Method of Manufacturing (Seamless or Welded) Heat Number Supplier/ Manufacturer's Name or Custom Logo - on request Marked Tube Sample: ASTM B338 Grade 2 SCH 40S 12" NB SEAMLESS HEAT NO. XXXX
Application wise types of Titanium Metal Gr 5 Tubes	Ti-6al-4v Titanium Oil Tube, Gas Tube, Fluid Tube, Boiler and ASTM B338 Heat exchanger Tube
Weldability	Easily Weldable

Are you a motorbike or car exhaust fabricator? Or may be an enthusiast looking to save weight in your performance street or race cars. Many Titanium Tube suppliers,exporters, dealers, importers, stockholders, and distributors procure the material from JIADE Overseas and supply this material with higher margins, so contact Oshwin directly to check our price list to get the best price in China. Contact us now for Free quote !!!
Titanium Grade 5 Tubing test procedure involves Mill Test Certificates EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC) Heat Treatment Charts Chemical Reports Mechanical Reports Form A for Generalized System of Preferences (GSP) Non Destructive Test Reports Third Party Inspection for Titanium Tubing NABL Approved Lab Reports Destructive Test Report Laboratory Test Certificate from Govt. Approved Lab 100% Radiography Test Report for Ti Grade 2 Tube Fumigation Certificates 100% inspection according to NACE standards Raw Materials Certificate PMI Test Reports Surface roughness measurement HS Code Commercial Invoice Moisture testing Visual Inspection Reports Grade 5 Titanium Tube Price in China ASTM B338 Tube available in 1.5 Od for aerospace industry, Small and Large Diameter Titanium Grade 5 Seamless Tubes at low cost in China

OD 25.4mm X THK 1.2mm X 5005mm Titanium Grade 2 Seamless Tube

INR1600/ Kg

Types of Titanium Tube
Complete range of Titanium Grade 2 Tubes

Ti-6al-4v EFW Tubing	Ti Alloy Cp Grade 2 Triangle Tubes
Ti Alloy Grade 5 ERW Tubing	Cold Drawn Titanium Seamless Tubing
TC4 grade Square Tubing	Titanium Grade 5 Hollow Tubes
Grade 2 Ti Round Tubes	Re Drawn Grade 5 Titanium Tubing
ASTM B861 Gr 5 Tube	Grade 5 Titanium Coil Tubes
Grade 2 Titanium Electropolish Tubing	Titanium Grade 2 Instrumentation Tubing
CP Ti Grade 5 ERW Tubes	High Pressure Ti Alloy Cp Grade 2 Tube
ASTM B861 Grade 5 Capillary Tubing	Titanium Metal Gr 5 Tube
Ti Cp Grade 5 Hydraulic Tubing	Ti-6al-4v Titanium Condenser Tubing
Ti Metal Gr 2 Rectangular Tubing	Titanium Cp Grade 5 Tube Bends
Commercially Pure Titanium Electropolished Tube	CP Titanium Dom Tubing
Ti-6AL-4V ELI Titanium Small Diameter Tubing	12mm Titanium Alloy Grade 5 Tubing
Titanium Cp Grade 5 High Pressure Tubes	Ti Alloy Grade 5 Elliptical and Oval Tubes
Ti Alloy Grade 5 Round Tubing	Grade 2 Titanium Finned Tubes
Ti Alloy Cp Grade 2 Welded Tube	Thin Wall ASTM B338 Titanium Alloy Tubing
Titanium Metal Gr 5 Instrument Tubing	Ti Metal Gr 2 Polish Tubing
Ti-6al-4v Titanium Square Tube	Commercially Pure Titanium Sanitary Tubing
ASTM B338 Titanium Alloy Exhaust Tubing	1 inch Ti-6AL-4V ELI Titanium Tubing
Titanium Grade 5 Gas Tubes	Titanium Grade 2 Coiled Tubing

Ti Alloy Cp Grade 2 Boiler Tube Maximum Temperature Limit

CP Ti Grade 2 Tube	480-540ºC (900-1000ºF)
Ti-6Al-4V, Grade 5 Tubing	800°F (427°C)

Titanium Metal Gr 5 Tube Coating Services Ceramic and glass filled linings Thin Film Engineered Polymer Coatings Phenol Epoxy Novolac Epoxy 1000 T Hybrid Epoxy High Functionality Epoxy - Coating Ti-6al-4v Titanium Square Tube size and weight DIMENSIONS WALL WEIGHT PER DIMENSIONS WALL WEIGHT PER (MM) (MM) METRE (KG) (MM) (MM) METRE (KG)

12.7 x 12.7	1.20	0.44	40 x40		1.20	1.49
12.7 x 12.7	1.50	0.55	40 x40		1.50	1.85
15 x 15	1.20	0.53	40 x40		2.00	2.45
15 x 15	1.50	0.65	40 x40		3.00	3.75
20 x 20	1.20	0.71	50 x50		1.50	2.32
20 x 20	1.50	0.88	50 x50		2.00	3.08
20 x 20	2.00	1.19	50 x50		3.00	4.65
25 x 25	1.20	0.92	60 x60		2.00	3.71
25 x 25	1.50	1.14	60 x60		3.00	5.49
25 x 25	2.00	1.49	70 x70		3.00	6.53
25 x 25	3.00	2.20	80 x80		2.00	4.98
30 x 30	1.20	1.10	80 x80		3.00	7.53
30 x 30	1.50	1.37	100 x 100		2.00	6.40
30 x 30	2.00	1.84	100 x 100		3.00	9.53
30 x 30	3.00	2.72

ASTM B338 Titanium Alloy Capillary Tube Size Chart

Gauge	Outside Diameter Tolerance mm	Regular Wall (RW) mm	Thin Wall (TW) mm	Extra Thin Wall (XTW) mm	Ultra Thin Wall (UTW) mm
30	0.304 - 0.317	0.064 - 0.089
29	o.330 - 0.342	0.064 - 0.089
28	0.355 - 0.368	0.076 - 0.102
27	0.406 - 0.419	0.089 - 0.115	0.064 - 0.089
26	0.457 - 0.469	0.089 - 0.114
25	0.508 - 0.520	0.115 - 0.140	0.089 - 0.114
24	0.558 - 0.571	0.114 - 0.140	0.089 - 0.114		0.051 - 0.102
23	0.635 - 0.647	0.140 - 0.165	0.089 - 0.114		0.051 - 0.102
22	0.711 - 0.723	0.140 - 0.165	0.096 - 0.121	0.077 - 0.102	0.051 - 0.102
21	0.812 - 0.825	0.140 - 0.165	0.102 - 0.127		0.051 - 0.102
20	0.901 - 0.914	0.108 - 0.165	0.108 - 0.134
19	1.054 - 1.079	0.166 - 0.216	0.102 - 0.140	0.070 - 0.108
18	1.257 - 1.282	0.191 - 0.241	0.127 - 0.165	0.083 - 0.121	0.051 - 0.102
17	1.460 - 1.485	0.177 - 0.229	0.115 - 0.152	0.083 - 0.127	0.057 - 0.102
16	1.638 - 1.663	0.204 - 0.254	0.127 - 0.165	0.096 - 0.133	0.070 - 0.121
15	1.816 - 1.841	0.204 - 0.254	0.127 - 0.165	0.096 - 0.134	0.070 - 0.121
14	2.082 - 2.133	0.216 - 0.292	0.165 - 0.229	0.114 - 0.165	0.076 - 0.134
13	2.387 - 2.438	0.267 - 0.343	0.191 - 0.267
12	2.743 - 2.749	0.267 - 0.321
11	3.023 - 3.073	0.293 - 0.368	0.216 - 0.292
10	3.378 - 3.429	0.318 - 0.394	0.216 - 0.292

N.B	(a)	Any intermediate size can be supplied on request.
	(b)	Supplied in sufficiently hard condition and also tested for the stiffness.

Ti Metal Gr 2 Exhaust Tubing Gauge Thickness GAUGE THICKNESS RANGE (INCH) TYPICAL VALUE (INCH)

22	0.025 - 0.029	0.028
20	0.031 - 0.035	0.035
19	0.038 - 0.042	0.042
18	0.044 - 0.049	0.049
17	0.053 - 0.058	0.058
16	0.060 - 0.065	0.065
15	0.066 - 0.074	0.072
14	0.075 - 0.085	0.083
13	0.087 - 0.097	0.095
12	0.101 - 0.111	0.109
11	0.112 - 0.122	0.12
10	0.126 - 0.136	0.134
9	0.140 - 0.150	0.148
8	0.157 - 0.167	0.165
7	0.175 - 0.185	0.18

Commercially Pure Titanium Welded Tube Tolerances Straightness: .030" in 3" Wall Tolerance +/- 10% O.D. INCHES WALL THICKNESS INCHES O.D. +/- INCHES

1/2" to 1" incl.	.025 to .065	.005
	Over .065 to .134	.010
1 to 1-1/2" incl.	.025 to .065	.008
	Over .065 to .134	.010
1-1/2" to 2" incl.	.025 to .049	.010
	Over .049 to .083	.011
	Over .083 to .148	.012
2" to 2-1/2" incl.	.032 to .065	.012
	Over .065 to .109	.013
	Over .109 to .165	.014
2-1/2" to 3-1/2" incl.	.032 to .165	.014
	Over .165 to .220	.020
3-1/2" to 5" incl.	.083 to .165	.020
	Over .165 to .220	.025

Ti-6AL-4V ELI Titanium Round Tube Other Facilities we offer We cut Titanium welded tubing to your exact dimension Grade 2 Titanium Tubing can be polished per customer specification Beveling Titanium Grade 5 tubes Heat treating & annealing Honing/ turning process for Titanium Tube Additional positive material identification (PMI) testing if required Ultrasonic Testing (UT) Titanium Cp Grade 5 Seamless Tube Chemical Compatibility ASTM B338 - Seamless and welded titanium alloy tubes for condensers & heat exchangers
Grade 2 Titanium Tube ELEMENT TITANIUM NITROGEN CARBON HYDROGEN IRON OXYGEN RESIDUALS (EACH) RESIDUALS (TOTAL)

%	Balance	0.03 max	0.08 max	0.015 max	0.30 max	0.25 max	0.1 max	0.4 max

Titanium Gr 5 Tube

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade5	90 min	-	0.25 max	-	-	0.2 max	6 min	4 min

CP Titanium Tube Mechanical Properties Titanium Grade 2 Tube 0.2% PROOF STRESS TENSILE STRENGTH ELONGATION MPA MPA %

Annealed	275-450	345	20

Titanium Grade 2 Tube Physical Properties DENSITY MELTING RANGE MODULUS OF ELASTICITY (TENSION) SPECIFIC HEAT MEAN COEFFICIENT OF EXPANSION THERMAL CONDUCTIVITY ELECTRICAL RESISTIVITY

kg/m3	°C	GPa	J/kg. °C	x10 -6 / °C	W / m. °C	micro-ohm.m
4,507	1668± 10	103	519	8.41	11.4	0.420

Titanium Grade 5 Tube

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 5	4.43 g/cm3	1632 °C (2970 °F)	Psi - 138000 , MPa - 950	Psi - 128000 , MPa - 880	14 %

Titanium Alloy Grade 5 Tube Equivalent Material Grade

ALLOY	WERKSTOFF NR.	UNS
Titanium Gr 2	R50400	3.7035
Titanium Gr. 5	3.7165	N56400

Detailed Photos

Company Profile
Lead time 10-15 days | 80% of output for export A Trading Company Specializing in Steel Industry for Over 30 Years Shaanxi Jiade Import & Export is one of the leading professional steel pipes and pipe fitting suppliers, established in 1991 and charge of the export business. We have more than 30 years' experience in manufacturing, distributing, processing, and exporting hot rolled and cold drawn seamless, ERW, EFW, HFW, LSAW, DSAW, and SSAW pipes boiler tubes, heat-exchanger tubes, condenser tubes, super-heater tubes, hydraulic honed tubes, mechanical tubes, structural tubes, line pipes, elbows, tees, reducers, and flanges. We mainly export products to Africa, Asia, Europe, Oceania, and North and South America.Supported by Machines and Equipment All our products are manufactured with the latest manufacturing techniques with machines and equipment, which are fitted with the highest technology, to provide products in full conformity with international standards.Meeting Inspection and Approval Certificates We have passed the Mill Test certificate, C/W certificate (Calibration works certificate) EN 10204 3.1, DIN 50049 3.1, ISO 10474 3.1, NACE MR-0103/NACE MR-0175/ISO 15156, PED-97/23/EC, AD-2000-WO, with 3.2 certificates duly certified and approved by LRS, GL, BV, DNV, ABS, SGS, TUV, RINA, IRS, NORSOK and more.Customized Service We provide product customization services such as shot blasting, precision pipe cutting, cut and roll grooving, custom pipe fabrication, pipe threading, pipe beveling, and coating. They are also approved by Third Party inspection agencies like DNV, BV, SGS, Moody, TuV, ABS, LR, GL, PED, RINA, KR, NKK, AIB-VINEOTTE, CEIL, VELOSI, CCSI, and more. We supply for PetroVietnam, WSF, YPFB, AWH, HMC, PTT, EP PetroEcuador, POD, KNPC, and more.Establishing Friendly Partnership Our mission is whether our clients are active in the oil and gas, water supply line, or construction, we endeavor to deliver the highest quality products and value-added services to support our clients' business. We pursue a win-win situation and long-term cooperative relationships with customers, providing specializing service for the old and new customers with better and more economical results. Packaging & Shipping
Shipping Information
FOB Port Weight per Unit HTS Code Export Carton Dimensions L/W/H

Tianjin

1500.0 Kilograms

7304.41.90 00

11.8 x 1.0 x 0.8 Meters

Lead Time Dimensions per Unit Units per Export Carton Export Carton Weight

15-30 days

11.8 x 1.0 x 0.8 Meters

25.0

1500.0 Kilograms

Certifications
Main Export Markets
- Asia - Australasia - Central/South America - Eastern Europe - Mid East/Africa - North America - Western Europe - <li>Southeast Asia

---
