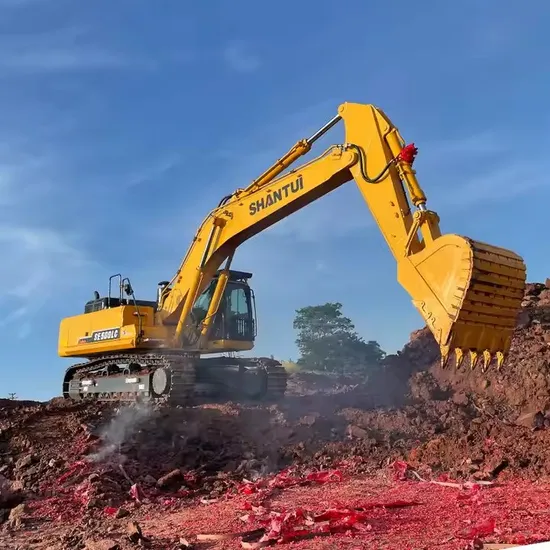

Shantui Brand New 50 Ton Large Crawler Excavator Se500LC for Mining

Product Description

Shantui Brand New 50 Ton Large Crawler Excavator SE500LC for Mining
1. Enhanced working device
The design of structural parts is comprehensive optimized and the critical load-carrying locations are reinforced to resist against severe working conditions.
The baseplates, side plates, and reinforcement plates of bucket are made of high-strength wear-resistant material to improve the durability of bucket.
The booms, bucket arms, and buckets of diversified specifications can be combined easily to adapt to diversified working conditions.
2. High-end system configuration
World's leading high-adaptability turbocharged engine.
The world's first-class hydraulic configuration features high working pressure and low pressure loss.
3. Spacious and comfortable operating environment
The colors of the all-injection-molded interior trim parts are effectively matched as per ergonomics to mitigate the operator's visual fatigue.
The control devices are reasonably arranged to realize large space, broad vision, and convenient and comfortable operations.
The high-power A/C system and the air cushioned seat guarantee comfortable driving/riding.
4. Drive sprockets, idlers, track rollers, carrier rollers, and tracks
30 years of R&D and manufacturing experiences of drive sprockets, idlers, track rollers, carrier rollers, and tracks and world's leading technologies.
The world's sophisticated forging and heat treatment processes guarantee stable and reliable quality.
5. Intelligent electronic control and optimal power control
The intelligent control system realizes the optimal match between power system and hydraulic system to improve the working efficiency and reduce the fuel consumption.
The man-machine friendly new generation intelligent electronic control system enables you to master all working status of your machine.
Four preset working modes of P (Heavy-Load), E (Economic), A (Automatic), and B (Breaking Hammer) feature easy switchover.
6. Quick and convenient maintenances
The backward-openable engine hood features handy opening, large opening angle, and easy maintenances.
The engine oil filter element is arranged remotely at the right door to ease the maintenances.
The high-precision fuel filter element is centrally arranged at the left door to ease the maintenances.
The filling of coolant and the replacement of air filter element are easily accessible.
The parallel radiator effectively avoids the overheating and eases the cleaning.
7. Optional equipment of machine
Refueling pump
Cab warning lamp
Cab ceiling lamp
Cab front upper protective net
Rubber track
Narrow bucket
Cab overhead protective net (Standard equipment)
Cab front lower protective net (Standard equipment)
8. Optional attachments
Breaking hammer, ripper, timber grab, stone grab, quick change coupling, hydraulic tamper, and breaking hammer pipeline.
Product Parameters

Comparative item	SE500LC (Standard version)
Overall dimensions	12240*3890*3715
Overall height (To top of cab) (mm)	3345
Ground clearance of counterweight (mm)	1390
Minimum ground clearance (mm)	575
Tail turning radius (mm)	3840
Track length (mm)	5475
Track gauge (mm)	2760
Track width (mm)	3360
Standard track shoe width (mm)	600
Turntable width (mm)	3530
Distance from slewing center to tail (mm)	3800
Maximum digging height (mm)	10435
Maximum dumping height (mm)	7590
Maximum digging depth (mm)	6630
Maximum vertical digging depth (mm)	4850
Maximum digging distance (mm)	10975
Maximum digging distance at ground level (mm)	10745
Working device minimum turning radius (mm)	4370
Model	QSM11(China III)
Type	Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L)	10.8
Rated power (kW/rpm)	280/2000
Type of hydraulic pump	Variable displacement duplex plunger pump
Rated working flow (L/min)	2x392
Bucket capacity (m³)	2.5~3.0(2.5)
Maximum swing speed (r/min)	9
Brake type	Mechanically applied and pressure released
Bucket arm digging force (KN)	285
Bucket digging force (KN)	305
Operating weight (kg)	49500
Ground pressure (kPa)	86
Traveling motor	Axial variable displacement plunger motor
Traveling speed (km/h)	3.3/5.6
Traction force (KN)	364
Gradeability	70%(35°)
Fuel tank capacity (L)	720
Cooling system (L)	24
Engine oil capacity (L)	35
Hydraulic oil tank/system capacity (L)	300/460

Detailed Photos
