US$4,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Transport Package
Wooden Box Packaged
Production Capacity
1000 Sets/Year
Product Description

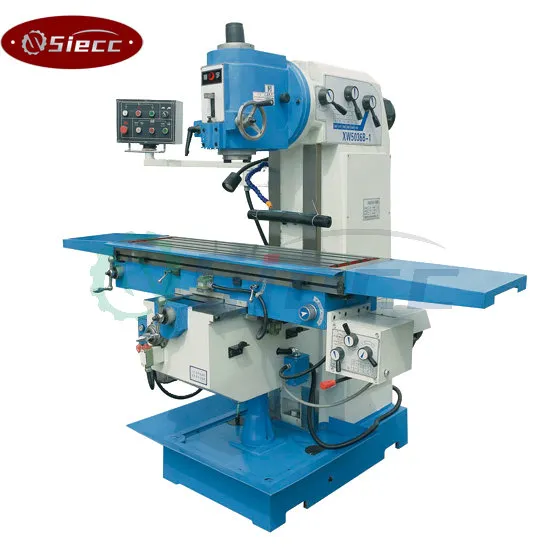

Universal horizontal milling machinery
| Item | Units | X6132 |
| Table | Table size | mm | 320*1325/1600 |
| No.of T-slots | | 3 |
| Width of T-slots | mm | 18 |
| Max load | kg | 500 |
| Distance between T-slots | mm | 70 |
| Travel | Longitudinal travel(manual/auto) | mm | 700/680,980/960 |
| Cross travel(manual/auto) | mm | 245/230 |
| Vertical travel(manual/auto) | mm | 320/300 |
| Spindle | Spindle taper | | 7:24(ISO NO.50) |
| Spindle bore diameter | mm | 29 |
| Spindle speed range | r/min | 30-1500 |
| Spindle speed step | steps | 18 |
| Axial mootion | mm | 85 |
| Max.swivel angle of spindle | | ±45 |
| Distance from spindle nose and table surface min/max. | mm | 215/470 |
| Distance from centre line of spindle to vertical guideway surface of column | mm | 30/350 |
| Feedrate | Cutting feed rate | mm/min | X:23.5-1180,Y:15-786,Z:8-394 |
| Rapid feed rate | mm/min | X:2300,Y:2300,Z:770 |
| NO. of feed | mm | 18 |
| Motor | Power of spindle motor | kw | 7.5 |
| Power of feed motor | kw | 2.2 |
| Others | Overall dimensions(LxWxH) | mm | 2294X1170X1665 |
| Net weight | kg | 2850 |
Nontong Lecroy Machine Tool Manufacture Co., Ltd., specializes in machine tool research and development design, manufacture and sales, with many years of production history of precision machine tool.
As "X53K milling machine professional manufacturer",the company has experienced engineering andtechnical staff and production workers.and more than 12000 square meters of workshop, we inherit and carry foward the traditional manufacturing technology with a large number of high level and precision machining equipment, perfect quality assurance system and complete testing facilities.
We professionally produce X5040(X53K), X5032(X52K) vertical knee type milling machine,X6140(X63W),X6132(X62W) series of unversal milling machine, X6325,X6330,X6332 rocker unversal milling machine etc. and we always devotes to development of new products to meet the various needs of customers!
With business philosophy of "excellent quality,customer first,integrity-oriented".we supply high quality machines to more and more customers,we will spare no efforts to pay you back with excellent quality, competitive price and quick aftersale service for your attention and support!
