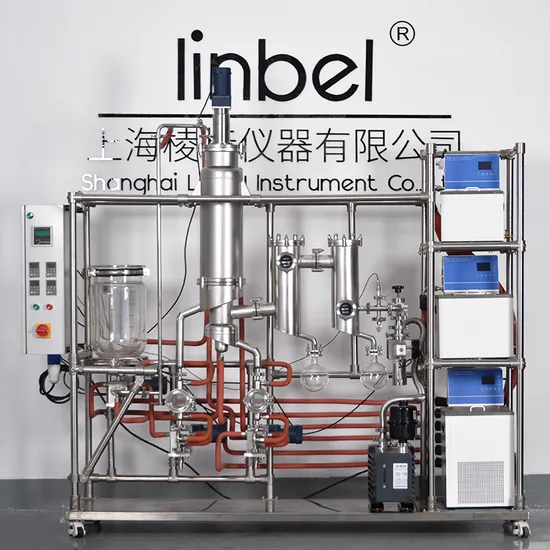

Stainless Steel Short Path Wiped Film Evaporator Molecular Distillation

Product Description

MODEL	FMD-250
Effective evaporation area (m2)	0.7
Feeding speed L/h	40-90
Frame material	304 seamless stainless steel, the contact surface with the material body is 316
Max speed RPM	450
Speed(rpm)	0-450
Motor	400W Adopting German technology, constant speed, low noise, no brushes, no sparks, safe and stable, and can work continuously
Feed tank	Double jacketed feed tank
Control Panel	Digital display of temperature and speed, flexible adjustment of speed through the knob
Condenser	Snake-shaped condensing coil, large condensing area and high efficiency
Move method	4 polyurethane (PU) casters with brakes and universal casters
Inlet and outlet oil circulation port	Using screw type, low in and high out
Power supply(V)	220V/50Hz(can be customized)
Tank working temp	-90~250ºC(Long-term use is recommended within 220 degrees)

FAQ:
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.

---
