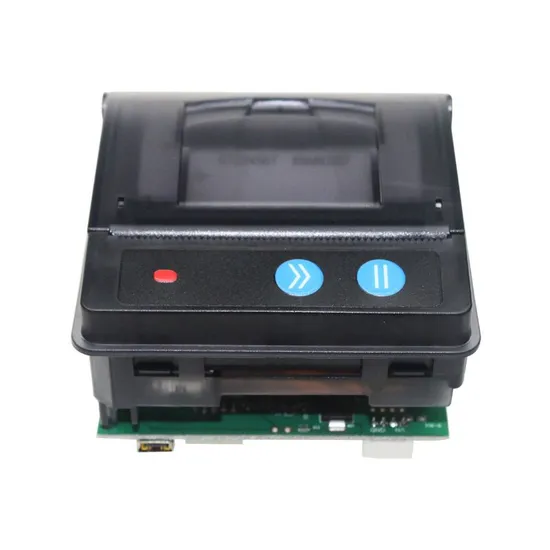

Cashino CSN-A1 Thermal Ticket Printer 2 Inch Embedded Printer for Water Dispenser

US$20.00
1-4,999 units
US$15.00
5,000+ units

Basic Info.

Model NO.
CSN-A1
Automatic Two-sided Printing
Not Support Automatic Two-sided Printing
Supply Paper Mode
Manual
Interface Type
RS232/TTL/USB
Network Function
Not Support Network
Style
Black and White
Consumable Type
thermal printer
Max. Paper Size
58mm
Character Structure
Full-width Characters Printers
Installation port size
73.1*73.55mm(W*L)
Software development kit (SDK)
Yes
Warranty(Year)
1-Year
Effective Printing Width
48mm
Size
76.8*77.4*47.7mm(W*L*H)
Max. Resolution
203dpi(8dots/mm)
After-sales Service
Return and Replacement
Insert Depth
34.65mm
Max Paper Size
58mm
Paper Roll Diameter
Max:40mm
Printing Method
Thermal Line Printing
Black Print Speed
90mm/s
Paper thickness
0.055-0.09mm
Power
DC5V-9V/12V
Interface
RS232/TTL/USB
Transport Package
100sets/Carton
Specification
76.8*77.4*47.7mm(W*D*H)
Trademark
Cashino
Origin
Fujian, China
HS Code
84433214

Product Description

Product Display Product Parameters
print mode Direct Thermal
print width 48 mm
print resolution 203 dpi(8dots/mm)
print speed 90 mm/s
media roll outer diameter max 40mm
Paper Thickness 55 to 90µm
TPH Life 50km
Interface Serial(RS232,TTL)/USB
Dimensions(WxLxH) 76.8x77.4x47.7mm
Installation port size (WxL) 73.1x73.55mm
Insert Depth size 34.65mm
Power 5-9V/12V
Certifications Exhibition Our Customer Says Payment & Delivery FAQ Q1.How could I get a sample?
A1:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q2.Sample time?
A2:Existing items: Within 1-2 days.
Q3.Whether you could make our brand on your products?
A3:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4.Whether you could make your products by our color?
A4:Yes, The color of products can be customized if you can meet our MOQ.
Q5.How to guarantee the quality of your products?
A5: 1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured.
