Foundry Heat Box Core Shooting Shooter Machine for Brass Spare Parts

Product Description

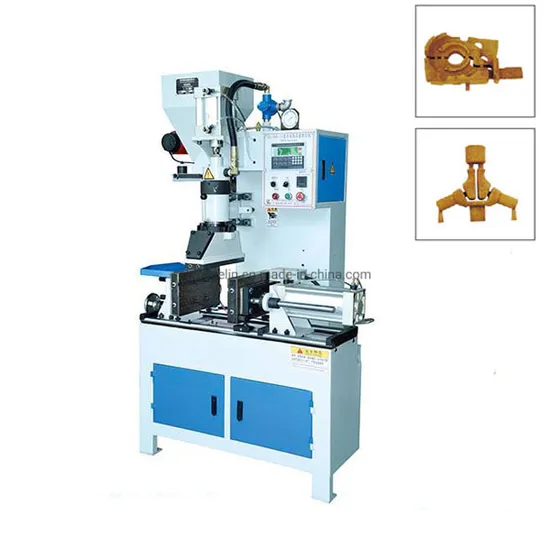

DL-300-II/DL-300-Z Heat Core Box Shooting Machine Features
1. The heat box core shooting machine is a kind of core shooting machine. It is a semi-automatic, vertical parting machine.
2. Simple, low cost, suitable for small quantity production.
3. The core shooting machine consists of three parts, such as mechanical part, pneumatic part and electrical part.
4. One needs to put the molds and take out sand cores by hand.
5. It is especially commonly used in copper and aluminum casting for producing sand cores of different shape and low structure strength.
Heat Core Box Core Shooting Machine

Content	Parameters
Max Weight Of Sand Cores	3.2kg
Max Size Of Core Boxes(Lx Wx H)	350 x 260 x 160mm
Itinerary Of Plunger Under Pressure	≤30mm
Size Of heating Plate((Lx W))	350*200
Itineary Of Core-pulling	125mm
Heating Power	6.5KW
Net Weight Of Machine	430kg
Size Of Appearance Of Machine(Lx Wx H)	(1250x 700x 1850)

The Machine Can be Customized By Client's Requirements!
Our Sand Core SHooting Machine:
Company Introduction:
Fujian Nanan Delin Machinery Manufacturing Co.,ltd
Delin Company Located in sanitary home Nanan,is the earliest professional casting equipment manufacturer in the southern parts of china.
With the area of 50000m2,350 workers including 65 middle&highclass professional technicians.
Main Products:Automatic molding machine,low pressure die casting machine,gravity casting machine,furnace,core shooting machine,mix sand machine,abrator,etc...
Widely used in plumbing,sanitaryware,car spares,valves.iron cast lines,etc
It provides a series of service,including technical conseling,mould designing,live training for staff,etc
Our Service:
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system. 1)Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine
We can design the machine you requirements 2)After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc
Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
1-2 Warranty Period 3)Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.

---
