Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry, Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery, Dry Cultivating Machinery
Power Source
Diesel, Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation, Soil Preparation Machinery
Traction Type
Traction, Traction
Drive Type
Gear Drive, Gear Drive
Arbor Configuration
Vertical Shaft, Horizontal Axis
Certification
ECE, CE, ISO
After-Sales Service
1 Year
Air Brake Type
Air Inflating
Nosewheel Steering Mechanism
Wheel Steering
Dumping Direction
Backward
Load Capacity
2t 3t 5t 8t
Transport Package
Seaworthy Packing
Production Capacity
20000 Units Per Year
Product Description

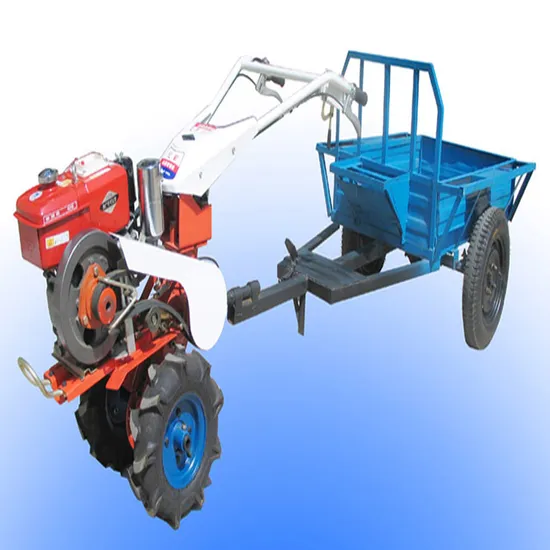

Powered by SH41 powertiller, this trailer can be used for transportation purpose and it can load 500kg to 700kg goods. The connection of trailer and power tiller adopt a pin, it is easy to operate.
Powered by R170 diesel engines, SH41 power tiller is simple and compact in construction, and light in paddy fields, Ideal for paddy fields, and has the advantage of reliability, long service life, easy and nimble to operate, as well as adaptable.
With corresponding implements, the tractor can go on plowing, harrowing, ridging, seeding, fertilizing, harvesting and so on, and it can also transport equipped with a trailer of 0.75 ton, or as fixing power, can be used for threshing, grinding, milling and pumping.
| Tiller | Type | 1WG-4 (with 170 diesel engine) |
| | Overall dimension (mm) | 1600*590*830 |
| | Tiller width (cm) | 45-90 |
| | Tiller depth (cm) | 5-25 |
| | Rotary blade | 24 |
| | Tire | 400-7 ( type pattern ) |
| | Shifting | 2+2 |
| Engine | Model | 170F |
| | Bore×Stroke (mm) | 70*70 |
| | Displacement (ml) | 0.269 |
| | Max power (kw/rpm) | 3.23 ( 4HP ) |
| | Type | single cylinder, air cooling, horizontal |
| | Start mode | Recoil |
| Packing | Overall dimension (mm) | 1120*450*770 |
| | N,W / G.W(kg) | 115/125 |
| | 40HQ (set) Loading quantity | 150/210-6 |
>>
