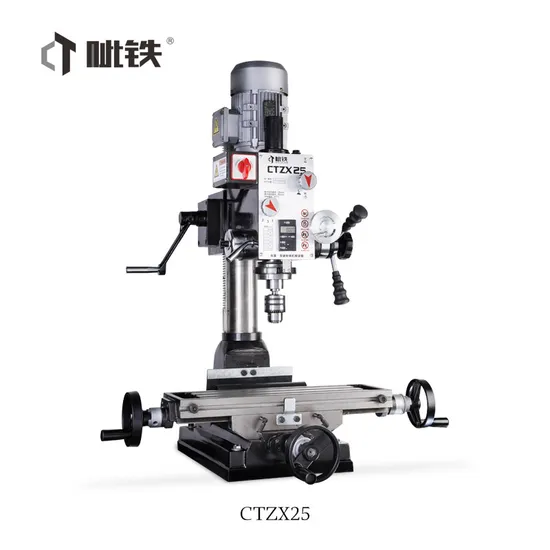

Mini Drilling Milling Machine Universal Ctmach Ctzx25 with CE

US$1,030.00
1-4 Sets
US$989.00
5-9 Sets
US$948.00
10+ Sets

Basic Info.

Model NO.
CTZX25
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
770*880*1160mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max.Drilling capacity 25mm
Max.milling capacity 52mm
Max.vertical milling capacity 16mm
Table size 520X160mm
X spindle travel 290mm
Y spindle travel 140mm
Spindle taper MT3
Spindle travel 85mm
Distance from spindle to column guide rail 203
Distance from spindle end to table surface 445
Spindle speed range/grade 95~1420r/min
Motor Power 750w
Net weight/gross weight 132KG/150KG
Package Size 680x680x1030mm
