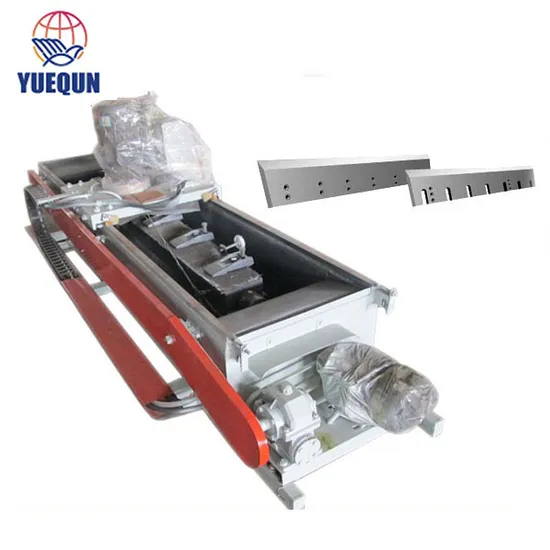

High Precision Automatic Knife Grinding Machine for Plywood

Product Description

Electromagnetic Automatic Knife Grinder
Model		YQ-1500	YQ-3000	YQ-3500
Max Grinding Length		1600 mm	3200mm	3600mm
Table Size		1550x180(200)mm	3000x180(200)mm	3550x180(200)mm
Total power		about 6.0kw	about 6.0kw	about 6.0kw

Example Specifications ---- YQ1500
Max grinding length			1600mm
Table size			1550x180(200)mm
Grinding wheel size			Φ200*Φ100*Φ32mm
Work voltage			380V / 440V ( can be customized )
Grinding wheel reciprocating speed			17m/min
Adjustable angel of work table			±90°
Driving method of grinding head			Transmission
Overall dimension			3850*1300*1300mm
Total power			6kw
Total weight			1800kg

Features 1. This machine mainly grind all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing Blades, sliceing knives etc.
2. This machine can work long surface knife. Max. Working length is 1500mm.
3. This machine's body is a design of gantry body, with the high-quality steel weld,The body has high strength and good rigidity.
4. The worktable use the electro magnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.
5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
6. Job accuracy of machine is 0.01mm.

Why Choose Us:
(1) lasering your logo on products and designing logo is free
(2) Delivery time within 30days
(3) No else charge
(4) MOQ≥1
(5) Provide products quotation
(6) Provide Packaging customization service
(7) SupportWechat/Email/whatsapp/
(8) We specializein this field for 25 years
(9) Excellent after-sale system
(10) Supporting visits to factory
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
FAQ:

Q1:Can you customize products for clients?
A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The price depends on the latest prices of the raw materials.

Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We}ll provide technical guidance.

---
