Movable Loading Ramp Container Hydraulic Dock Leveler

Product Description

Product Description

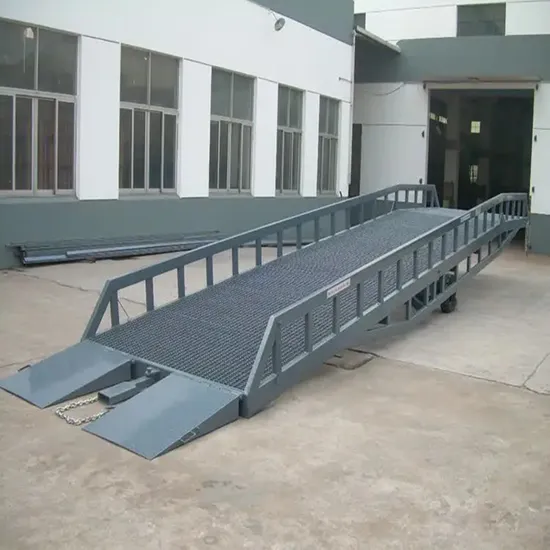

Hydraulic mobile loading yard ramp dock leveler is cargo handling auxiliary equipment,is used together with the forklift.
Only need one person operate, can realize the rapid loading and unloading goods.It makes the enterprise to reduce a large number of labor force, improve work efficiency, and gain greater economic benefit.



Product Parameters

Model	Capacity	Lifting height	Table size	Total dimension	Weight	Operation
YDCQ-5	5T	1-1.8m	10*2m	10.5*2.08*1.0m	2800kg	Manual/ Electric
YDCQ-6	6T	1-1.8m	10*2m	10.5*2.08*1.0m	2900kg	Manual/ Electric
YDCQ-8	8T	1-1.8m	10*2m	10.5*2.08*1.0m	3000kg	Manual/ Electric
YDCQ-10	10T	1-1.8m	10*2m	10.5*2.08*1.0m	3100kg	Manual/ Electric
YDCQ-12	12T	1-1.8m	10*2m	10.5*2.08*1.0m	3200kg	Manual/ Electric
YDCQ-15	15T	1-1.8m	10*2m	10.5*2.08*1.0m	3300kg	Manual/ Electric

Main Features
★Platform uses special diamond mesh plate,has reliable strength,can ensure the long-term use without deformation.It is antiskid steel nets which benefit for forklift to climb even meets rain or snow.
★Operation: manual or electric, battery can be installed on it;
★Option of Italy imported advanced hydraulic system, with great performance.
★Heavy-duty mobile tyre,Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
★Safety crack-proof valve on pump station.
Detailed Photos


Packaging & Shipping

---
