Silinman R, K, F, S Series AC Gear Motor

Product Description

Silinman AC Gear Motor 1)Micro AC Gear Motor
2)Small AC Gear Motor
3)R, F, K, S Gear Motor
Micro AC Gear Motor=Micro AC Motor(Induction motor, reversible motor,torque motor)+Gearbox(Reducer) Micro AC Motor type:
1)Induction motor, with working form,S1-continuous working;
2)Reversible motor, with working form,S2-30min working(can frequently forward and reverse);
3)Torque motor, no rotor block
Motor Size:60mm,70mm,80mm,90mm,104mm,120mm
Motor Power:6w,10w,15w,25w,40w,60w,90w,120w,140w,180w,200w,250w,300w,370w,400w,750w,1.5kw
Motor Voltage:AC,1phase110v,1phase220v,1phase230v,3phase220v,3phase380v,3phase220v/380v,and other customized voltages
Motor Poles and Speed:4P,1400rpm/50Hz;1680rpm/60Hz(2P is available)
Motor accessories:electromagnetic brake,terminal box,thermally protection,fan
Output shaft:round shaft,gear shaft
Rotation direction:CW,CCW
Micro AC Motor with round shaft
Micro AC Motor with gear shaft

Micro AC Motor

Code

Size

Power

Single phase

Three phase 3 wires

Three phase 6 wires

Terminal junction box

Constant speed

Speed regulation

Thermally

Brake

Damping

Thermally

Brake

Damping

Thermally

Brake

Damping

Brake

Damping

2

60mm

6w

×

×

×

×

×

×

×

×

×

×

×

√

3

70mm

15w

√

√

√

√

√

√

√

√

√

√

×

√

4

80mm

25w

√

√

√

√

√

√

√

√

√

√

×

√

40w

√

√

√

√

√

√

√

√

√

√

×

√

5

90mm

40w

√

√

√

√

√

√

√

√

√

√

×

√

60w

√

√

√

√

√

√

√

√

√

√

×

90w

√

√

√

√

√

√

√

√

√

√

×

120w

√

√

√

√

√

√

√

√

√

√

×

140w

√

√

√

√

√

√

√

√

√

√

×

180w

√

√

√

√

√

√

√

√

√

√

×

6

104mm

180w

√

√

√

√

√

√

√

√

√

√

×

√

200w

√

√

√

√

√

√

√

√

√

√

×

250w

√

√

√

√

√

√

√

√

√

√

×

300w

√

√

√

√

√

√

√

√

√

√

×

370w

√

√

√

√

√

√

√

√

√

√

×

7

120mm

400w

√

√

√

√

√

√

√

√

√

√

×

√

550w

√

√

√

√

√

√

√

√

√

√

×

√

750w

√

√

√

√

√

√

√

√

√

√

×

Gearbox type:GK,GS,90mm five-stage gearbox
Gearbox size:60mm,70mm,80mm,90mm,104mm,120mm
Gearbox ratio:2K-750K
Decimal middle gearbox:10X

Gear Reducer
Code	Size	10X middle gearbox	Normal type GK Gearbox
			Output shaft/key width	Ratio
				2 stage transmission	3 stage transmission	4 stage transmission
2	60mm	can customize round shaft Φ8/Φ10	Φ8 milling 7, Φ10 key 4	2k,2.5k,3k,3.6k,4k,5k,6k,7.5k,9k,10k,12.5k,15k, 18k	20k,25k,30k, 36k,40k	50k,60k,75k,80k,90k,100k,120k,150k,180k,200k,250k,300k
3	70mm	can customize round shaft Φ10/Φ12	Φ10 key 4	2k,2.5k,3k,5k,6k,7.5k,9k,10k, 12.5k,15k,18k	20k,25k,30k, 36k,40k,50k	60k,75k,90k, 100k,120k,150k,180k,200k,250k
4	80mm	can customize round shaft Φ10/Φ12	Φ10 key 4	2k,2.5k,3k,5k,6k,7.5k,9k,10k, 12.5k,15k,18k	20k,25k,30k, 36k,50k	60k,75k,90k, 100k,120k,150k,180k,250k,300k
5	90mm	can customize round shaft Φ10/Φ12/ Φ15	Φ12 key 4 Φ15 key 5	2k,2.5k,3k,3.6k,5k,6k,7.5k,9k, 9.5k,10k, 12.5k	15k,18k,20k, 25k	30k,36k,50k,60k,75k,90k,100k, 120k,150k,180k,250k,300k,400k,500k,600k,750k
6	104mm	can customize round shaft Φ12/ Φ15/Φ18	Φ15 key 5 Φ18 key 6	2k,2.5k,3k,3.6k,5k,6k,7.5k,9k, 9.5k,10k, 12.5k	15k,18k,20k, 25k,30k,36k, 50k	60k,75k,90k, 100k,120k,150k, 180k,250k,300k, 400k,500k,600k, 750k
7	120mm	can customize round shaft Φ22/ Φ25	Φ22 key 6	2k,2.5k,3k,3.6k,5k,6k,7.5k,10k, 12.5k	15k,18k,20k, 25k,30k	40k,50k,60k,75k,90k,100k,120k,150k,180k,200k,250k

Gearbox type: Right Angle Gearbox(Hollow center, Solid output shaft ceneter, Hollow eccentric,Solid output shaft eccentric)
Gearbox size: 80mm,90mm,104mm,120mm
Gearbox ratio:2K-2250K

Right Angle Gear Reducer
Code	Size	Output shaft diameter				Gear Ratio
		Hollow Center		Solid Center
		Standard	non-standard	Standard	non-standard
4	80mm	Φ15	×	Φ12	×	6k,7.5k,9k,15k,18k,23k,27k,30k, 37.5k,45k,54k,60k,75k,90k,108k, 150k,180k,225k,270k,300k, 360k,450k,540k,750k,900k
5	90mm	Φ17	Φ15,Φ20	Φ15	×	right angle center(spiral bevel gear) right angle eccentric(worm gear) 2.5k,3k,3.6k,5k,6.25k,7.5k,9k, 12.5k,15k,18k,23k,25k,31k, 37.5k,45k,50k,62.5k,75k,90k, 125k,150k,188k,225k,250k, 300k,375k,450k,625k,750k, 1000k,1250k,1500k,1875k
6	104mm	Φ22	Φ17,Φ20, Φ24,Φ25	Φ22	Φ20	6k,7.5k,9k,15k,18k,23k,18k,30k,37.5k,45k,54k,60k,75k,90k,108k,150k, 180k,225k,270k,300k, 360k,450k,540k,750k,900k, 1200k, 1500k,1800k,2250k
7	120mm	Φ30	Φ22,Φ20, Φ28	Φ30	Φ22	6k,7.5k,9k,11k,15k,18k,23k,30k,37.5k,45k,54k,60k,75k,90k,120k,150k, 180k,225k,270k,300k, 360k,450k,540k,600k,750k

Small AC Gear Motor Motor type:GH(Horizontal foot mount),GV(Vertical flange mount)
Motor power:100w,200w,400w,550w,750w,1100w,1500w,2200w,3000w,3700w,4000w,5000w,5500w,7500w
Motor voltage:single phase 110V,single phase 220V,3phase 220v/380v, and other customized voltages
Gearbox ratio:2.5K-200K
Middle gearbox ratio:250K-10000K

Small AC Motor					Gearbox(Reducer)		Gear Ratio
	Stator diameter	Remarks	Power	Configuration	Output shaft diameter	Box style	2 stage	3 stage
3phase	110mm		100w,200w,400w	normal, brake,independant fan	18mm(key 5mm,6mm)		3K,3.6K,4K,5K,6K,7.5K,9K,10K,12.5K,15K, 18K,20K,25K,30K	40K,50K,60K,84K, 100K,108K,125K,150K,180K,200K
1phase			100w,200w,400w	normal, brake,independant fan
3phase	110mm		100w,200w,400w	normal, brake,independant fan	22mm(key 6mm,7mm)	Horizontal A style; Horizontal B style; Vertical A style; Vertical B style square flange; vertical C style round flange	2.5K,3K,3.6K,5K,6K,7K,10K,12.5K,15K,18K, 20K,25K,30K,36K	40K,50K,60K,75K,84K,96K,107K,120K,160K,180K,200K
	140mm	shrink frame type	400w,550w,750w	normal, brake,independant fan
1phase	110mm		100w,200w,400w	normal, brake,independant fan
	140mm	shrink frame type	400w,550w	normal, brake,independant fan
			750w	normal, brake,independant fan,off core switch
3phase	110mm		200w,400w	normal, brake,independant fan	28mm(key 7mm,8mm)	Horizontal A style; Horizontal B style; Vertical A style; Vertical B style square flange;	2.5K,3K,4K,5K,6K,7K, 7.5K,10K,13K,15K, 17.5K,20K,25K,30K	36K,40K,50K,60K,70K,80K,90K,100K,108K, 120K,135K,150K,160K,180K,200K
	140mm		400w,550w,750w,1100w	normal, brake,independant fan
	160mm	shrink frame type	1500w,2200w	normal, brake,independant fan
1phase	110mm		200w,400w	normal, brake,independant fan
	140mm		400w,550w	normal, brake,independant fan
			750w	normal, brake,independant fan,off core switch,brake+off core switch
			1100w	normal, brake,independant fan,off core switch
	160mm	shrink frame type	1500w,2200w	normal, brake,independant fan,off core switch
3phase	140mm		400w,550w,750w,1100w	normal, brake,independant fan	32mm	Horizontal A style; Horizontal B style; Vertical A style;	3K,4K,5K,6K,7K,8K,9K,10K,12.5K,15K,18K, 20K,25K	30K,36K,40K,50K,60K,70K,75K,80K,100K, 108K,125K,160K,180K,200K
	160mm		1500w,2200w	normal, brake,independant fan
1phase	140mm		400w,550w	normal, brake,independant fan
			750w	normal, brake,independant fan,off core switch,brake+off core switch
			1100w	normal, brake,independant fan,off core switch
	160mm		1500w,2200w	normal, brake,independant fan,off core switch
3phase	140mm		750w,1100w	normal, brake,independant fan	40mm	Horizontal A style; Vertical A style	3K,4K,5K,6K,7K,8K, 10K,12.5K,15K,18K, 20K,25K	30K,40K,50K,60K,75K,80K,90K,100K,120K, 140K,160K,180K,200K
	160mm		1500w,2200w	normal, brake,independant fan
	180mm		3000w,3700w,5000w	normal, brake,independant fan
1phase	140mm		750w,1100w	normal, brake,independant fan,off core switch
	160mm		1500w,2200w	normal, brake,independant fan,off core switch
3phase	160mm		1500w,2200w	normal, brake,independant fan	50mm	Horizontal A style; Vertical A style	3K,4K,5K,6K,7.5K,9K, 10K,12.5K,15K,18K, 20K,25K,30K	40K,50K,60K,75K,80K,90K,100K,110K,125K,140K,180K,190K
	180mm		3000w,3700w,5000w	normal, brake,independant fan
	210mm		5000w,5500w,7500w	normal, brake,independant fan
1phase	160mm		1500w,2200w	normal, brake,independant fan,off core switch

R,F,K,S Gear Motor
1)R Helical Geared Motor
R(foot mounted):R37,R47,R57,R67,R77,R87,R97,R107,R137,R147,R167
RF(flange mounted):RF37,RF47,RF57,RF67,RF77,RF87,RF97,RF107,RF137,RF147,RF167
RX(foot mounted):RX37,RX47,RX57,RX67,RX77,RX87,RX97,RX107
RXF(flange mounted):RXF37,RXF47,RXF57,RXF67,RXF77,RXF87,RXF97,RXF107
Can match: ac motor from power 0.12kw to 160kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE
2)F Parallel Shaft-Helical Geared Motor
F(foot mounted ):F37,F47,F57,F67,F77,F87,F97,F107,F127,F157
FA(foot mounted with hollow shaft):FA37,FA47,FA57,FA67,FA77,FA87,FA97,FA107,FA127,FA157
FF(B5 flange mounted):FF37,FF47,FF57,FF67,FF77,FF87,FF97,FF107,FF127,FF157
FAF(B5 flange mounted with hollow shaft )FAF37,FAF47,FAF57,FAF67,FAF77,FAF87,FAF97,FAF107,FAF127,FAF157
Can match: ac motor from power 0.12kw to 200kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE

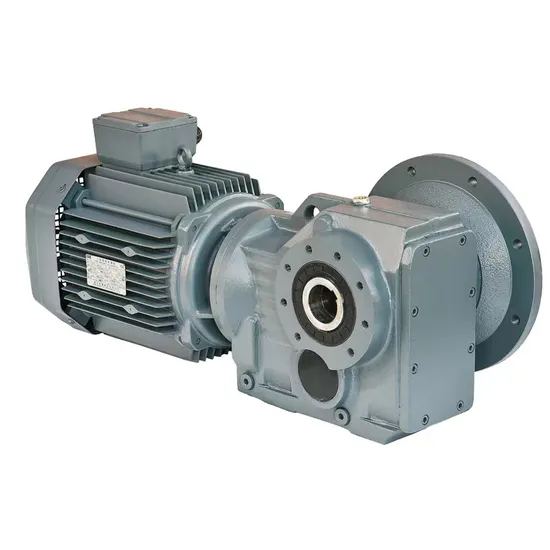

3)K Helical-Bevel Geared Motor
K(foot mounted):K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187
KA(foot mounted with hollow shaft):KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127,KA157,KA167,KA187
KF(B5 flange mounted):KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187
KAF(B5 flange mounted with hollow shaft):KAF37,KAF47,KAF57,KAF67,KAF77,KAF87,KAF97,KAF107,KAF127,KAF157,KAF167,KAF187
Can match: ac motor from power 0.12kw to 200kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE
4)S Helical-Worm Geared Motor
S(foot mounted):S37,S47,S57,S67,S77,S87,S97
SA(foot mounted with hollow shaft):SA37,SA47,SA57,SA67,SA77,SA87,SA97
SF(B5 flange mounted):SF37,SF47,SF57,SF67,SF77,SF87,SF97
SAF(B5 flange mounted with hollow shaft):SAF37,SAF47,SAF57,SAF67,SAF77,SAF87,SAF97
Can match: ac motor from power 0.12kw to 22kw,WITH BRAKE, WITH ENCODER ARE AVAILABLE

---
