Best Quality Liquefied Petroleum Gas LPG Unloading Tank Truck Flowmeter

Product Description

Product Description Positive Displacement Flow Meter
Advantage:
Excellent stepless adjusting mechanism allows a micro adjustment of the meter;
High accuracy and repeatability over the widest range of flow;
Superior accuracy at constant flow; Low maintenance, no metal-to-metal contact in measuring chamber, Long life service;
Low pressure loss, a true gravity flow meter;
Accuracy regardless of pressure fluctuations, temperature variation, viscosity;
Choice of aluminum, cast iron, brass and stainless steel materials of construction.
Application:
1. refined petroleum products;
2. aviation gasolines and jet fuels;
3. a wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.
4. treated waters (deionized, demineralized, and potable);
5. chlorinated solvents and general solvent metering;
6. acid pH liquids;
7. liquefied petroleum gas(LPG);
8. crude oil, also for heated and/or viscous liquids;
9. oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions; herbicide;
10. sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids ,abrasive liquids.

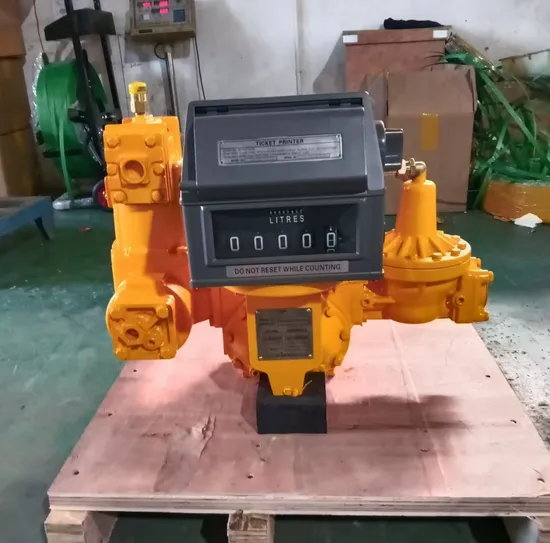

Detailed Photos

Product Parameters

Model	M-40-1	M-50-1	M-80-1	M-100-1	M-150-1
Size	40mm/1.5"	50mm/2"	80mm/3"	100mm/4"	150mm/6" and 100mm/4" for option
Flow Range	25-250L/M	55-550L/M	115-1150L/M	170-1700L/M	300-3000L/M
Volume Per Revolution	0.309L	0.681L	1.839L	5.102L	14.87L
Max. Pressure	10Bar
Accuracy	±0.2%
Repeatability	≤0.7%
Standard Measurement	Liter/US Gallon/IMP Gallon
Dimension	51×46×49cm	51×46×49cm	58×50×61cm	76×64×72cm	80×65×79cm
Net Weight	23kg	26kg	40kg	70kg	130kg
Gross Weight	24kg	27kg	42kg	93kg	150kg
Package	1PC/CTN			1PC/Wooden Case

Related Products Workshop

Company Profile Certifications
FAQ If you are not sure which model meets your requirement:
Flow meter, what is the medium that you need to measure? What is the flow rate? Pipe diameter? Pump, what is the medium that you need to pump? Diesel, petrol, lpg gas or others? What is the pipe diameter, flowrate, power etc. ? Nozzle, what is the medium that you need to pump? What is the size ? thread NPT or BSPF ? LPG compressor, what is the intake pressure, discharge pressure, flowrate, power, voltage etc.

---
