Product Details
Product Description
Product Description
Features
(1). High performance 4 axis milling CNC controller. (2).The standard spec includes electronic hand wheel.
(3).Selection of high -quality casting materials,more compact.
(4).X, Y, Z, A four axis micron level interpolation accuracy controlling;
(5).USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(6).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(7).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
(8). Can run ISO G code
(9).With the automatic aligning instrument.
(10).Teaching function: Teaching+ simplified instruction programming, teaching methods in table format, that is simple and intuitive.
(11).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(12). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display, processing time, the number.
(13).Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
(14).8 inch super large colorful(800*600) LCD screen.

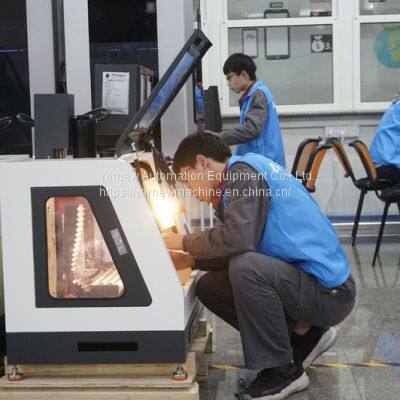

(15) .Applicable industry: technology development, advertising design, art, vocational technical college Education & Training CNC and DIY enthusiasts.
(16)
Technical parameters
|
X axis travel
| 220mm
|
Y axis travel
| 120mm
|
Z axis travel
| 200mm
|
A axis travel
| ±360°（Optional Accessory）
|
Tool DIA. range
| 4-12mm
|
Control system
| KY1000MC controller
|
Instruction
| Run ISO G code
|
MPG hand wheel
| 4 axis
|
Spindle motor
| 2.2kw
|
Spindle speed
| 300-24000r/min
|
The max moving speed
| 2000mm/min
|
The max feeding speed
| 1000mm/min
|
Guide rail
| High-precision linear guide
|
Positioning accuracy
| 0.02mm
|
Repeatability accuracy
| 0.01mm
|
Transmission
| ball screw
|
Table size
| 460*130mm
|
T slot (amount*width)
| 38*12mm
|
Max. load
| 30kg
|
Table structure
| Full cast iron
|
Power
| 220VAC / 110VAC
|
Weight(NW/GW)
| 200/220kg
| 240/270kg with pedestal
|
Overall dimension
| 850*650*1100mm
| 850*650*1700mm with pedestal
|
Packing size
| 950*750*1200mm
| 950*750*1800mm with pedestal
|
>>
