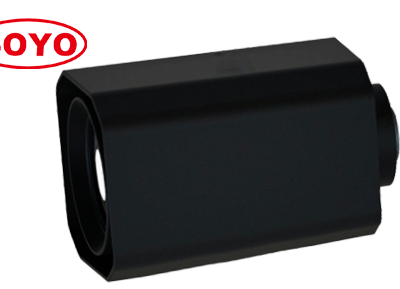

28-128mm 1.1" 12Megapixel Motorized Zoom Lenses Security Surveillance CCTV Lens Camera Optics ITS LPR Liscence Plate Recognition Industrial IR DC /3 Motors / P-iris C Mount NIR China Lentz
PDF Datasheet : S11MZ28128PIR-12M
High resolution: 12 megapixel covering 4K, 1080P
Suitable F. length: 28-128mm making up short distance surveillance.
Big aperture: F2.5 suitable for dark vision
Large format: 1.1" large format covering all 1",1/1.7",1/2"
Compact size : Compact small size lens for special application.
Optional Iris : P-iris & 3 motors, DC iris for option
Application: Highway,train, industry, power station, city surveillance
Model
| S11MZ28128PIR-12M
|
Resolution
| 12 Megapixel
|
IR Corrected
| IR
|
Format
| 1.1"
|
Focal Length
| 28-128mm
|
Aperture (Close/360)
| F2.5 P-Iris
|
Angle of View (°)
| 1.1" IMX428
| W: 32.3*26.5*18.1 T: 8.5*7.1*4.9
|
1" IMX305
| W: 29.5*25.9*13.6 T: 7.8*6.9*3,7
|
1/1.2" IMX485
| W: 23.5*20.4*11.4 T: 6.3*5.5*3.1
|
M.O.D
| 3m(W) ~ 5m (T)
|
Distortion
| -4.3%-1.7%@1.1; 2.1%-0.9%@1/1.2”
|
Relative illumination
| 42%@Φ12.8mm (W);40% Φ12.8mm (T)
|
C.R.A
| 1.9° Tele;3.0° Wide
|
Dimension
| Φ80*85*144.8mm
|
B.F.L
| 12.02mm
|
M.F.L
| 13.526mm
|
Mount
| C
|
Weight
| 500g
|
Relative Illum
| 45% Wide Φ8.8;40% Tele Φ8.8
|
Character
| Coating 400~900nm;-30°~+70°
|
(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTVレンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )
Cell： 86-18949838193
Email： fany@soyocctv.com
Skype/wechat： soyocctv
>>
