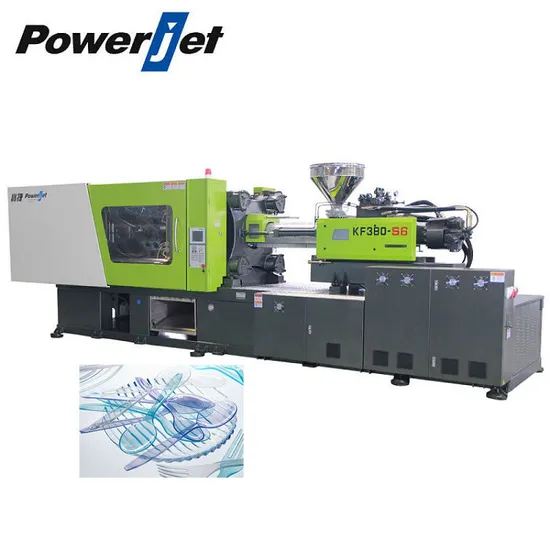

Disposable Plastic Cup/Spoon/Food Container Making Moulding Injection Molding Machine

Product Description

Powerjet provides specialized injection molding machines dedicated to plastic cutlery products, such as: Disposable thin-wall food containers, plastic spoons, forks and knives, etc. We have improved the injection system to makes thin-wall products easier to solidify, and can save 30-50% of energy compared to common models.
KF series is our specialized injection molding machine for thin-wall products
FEATURES:
1:Energy-Saving 30%~50%
Servo motor with energy-saving controlled hydraulic systems can save electricity up to 30%~50%.
2:Low Temperature Injection
Low-Temperature Injection Makes More Energy Saving And Keeping Products With High Tenacity And Toughness By Our Innovative Plasticizing System.
3:Low Pressure Injection
Low-Pressure Injection To Gain Better Mechanical Protection And Longer Mould Service Life. Also Makes Molding Products With Low Stress And Deformation.
4:Fast Response Speed
Optimized Control System Response Speed Let Our Shooting Rate Reaching The Best Short Time Within 0.3 Seconds.
Product Description
Company Information
Product Parameters

	DESCRIPTION	UNIT	KF398-S8
CLAMPING UNIT	Clamping force	KN	3980
	Opening stroke	mm	580
	Max.datlight	mm	1230
	Platen size	mm	1000*1000
	Space between bars	mm	670*670
	Max.mold height	mm	650
	Min.mold height	mm	240
	Ejector stroke	mm	100
	Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	52
	Screw L/D Ratio	L/D	24
	Injection Pressure	MPa	188
	Shot volume	cm3	425
	Screw stroke	mm	200
	Screw speed	rpm	300
POWER UNIT	Pump motor power	KW	51+51
	Heater power	KW	30

Packaging & Shipping
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years of Experience In Manufacturing Injection Molding Machines and Blow Molding Machines.
Q2: Is it possible to send an engineer to install and commission the machine, even train our workers?
A2: Yes, we can send our engineer to your factory for installation, commissioning, training. We have some engineers flying among different countries for after-sales service and technical support. Therefore, we need you to prepare an invitation letter for the visa before shipment. However, please be noted that all costs for visa, travel, the hotel should be paid in advance by customers.
Q3: If we buy your machines, is there any warranty?
A3: Yes, definitely. 12-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 12-months. We will supply those parts for free but the possible transportation cost should be paid by clients.

---
