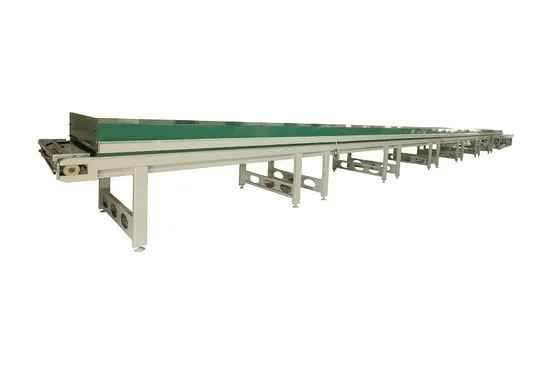

Anti Finger Print Coating Machine

Product Description

Anti-Finger Print Coating Machine

Anti Finger Print Coating Machine roller-coats a layer of a Nano Material on the surface of Stainless Steel Sheets, This Nano Material has a metal-Pro property, After being coated and baked, it will stay on the surface permanently (Without being damaged in Bending or Deep Drawing Process) and form a layer of protective film, which will protect the surface from getting affected by Oxide as well as moistures from the air, Which will largely improve the Stainless Quality of the Stainless Steel.

With this protective film, the Surface will also be easily cleaned when dirt or finger print gets on, Thus, the name "Anti-Finger Print".

Anti-Finger Print Coating Machine is featured by:

--- Low Operational Cost

--- High Productivity

---Roller Brush Cleaning System & Air Blower Dryer to ensure Better Processing before
Coating.

--- Special Rubber Roller to ensure the Better& Even Coating on the surface

--- Well-Sealed and Heating-Proof Baking Tunnel to ensure the better control Of
Temperature inside

---Special Elevation System to ensure the Accuracy of the layer Thickness.

--- Imported Scratcher for Better Cleaning of Coating Rollers, this ensures the Better
Recycling of Coating Material.

--- High-Power and High-Speed Cooling System after Baking to ensure the Better and
Faster lamination after Coating.


Anti-Finger Print Coating Machine is composed of: Inlet, Intermediate & out Let Roller Table ,Pre- Cleaning Unit , Pre Drying Unit, Coating Machine, Drying Tunnel, Cooling Unit, Laminator Etc.
Main Parameters:

Work Pieces: Stainless Steel Sheets or Plates of all grades
Useful thickness: 0.5~~3MM
Useful Length: 1,000~~6,000MM
Useful Width: <=1,219MM, or <=1,550MM
Transmitting Speed: 0.5~~2.5M/Min
Finishing Result: Anti-Finger Print Coating
Type: Sheets to Sheets

Non-Standard Machine will be made upon Request.

Application:

After Anti-Finger Print Process, The Stainless Steel Sheets will have properties as follows,

1): Easy Clean

2): No Color Change after long time installed on the outside

3): When the sheet is Color Coated with PVD, by adding another layer of Anti-Finger
Print Coating, the original monotonous color will have a watery Look.

4): More Anti-Scratch: Hardness of Common Stainless Steel sheet is normally 2H~~3H,
by adding this layer of Nano Material, hardness can reach 8H or Above, Property of
Anti-Scratch can be greatly improved.

5): More Anti-Corrosion: Common Stainless Steel Sheet can stay for 400 Hours In a Salt
Spray Test, while Anti-Finger Print Coated Sheet can withstand The test for 600
Hours or longer.

6): PVD Coated Sheet is incompatible with Cement, while after Anti-Finger Print Coated,
It could be more "Friendly" with Cement.

7): No Melting While cut by laser

8): Great Adherence---Bending and cutting will still be as easily carried out as Before.

Thickness of the Film is usually from 5μm~8μm

Because of all the advantages with Anti-Finger Print Coating, It has been widely used in many filed which has a high end requirement for quality.
Typical Application of this product is: High-End Elevator, Escalator, Outside Cladding, Home Appliance, and Construction Purpose in Humid Areas Etc.

---
