High Efficient Rubber Dispersion Kneader with Ce ISO9001

Product Description

♥ Qingdao HUICAI Cooperate Sincerely With You ♥

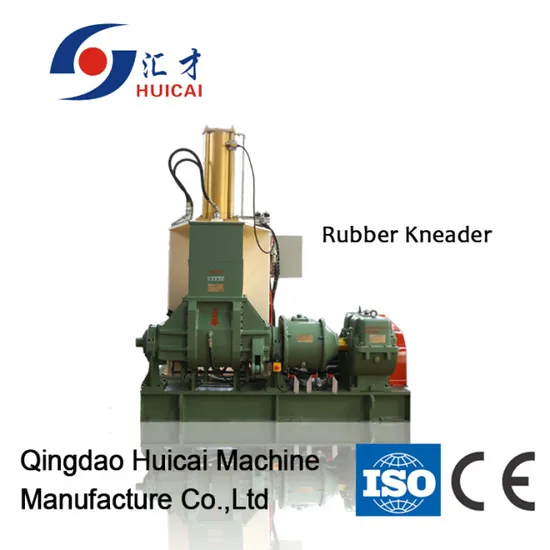

Rubber Kneading Machine/Rubber Kneader

♣ Technical Parameters:

Type	X(S)N-3*32	X(S)N-10*32	X(S)N-20*32	X(S)N-35*30	X(S)N-55*30	X(S)N-75*30	X(S)N-110*30	X(S)N-150*30
Total Volume of kneading chamber	8	25	45	75	125	180	250	325
Total Volume of mixing chamber	3	10	20	35	55	75	110	150
Driving motor power	5.5	15	30	55	75	110	185	220
Tipping motor power	0.55	1.1	1.5	2.2	3.0	4.0	5.5	5.5
Tipping Angle	135°	140°	140°	140°	140°	140°	140°	140°
Rotational speed of the rotor	0~60,32/24.5	30/23.5	30/25	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Flow rate of compressed air	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Flow rate of compressed air	≥0.3	≥0.5	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥1.5
Pressure of Cooling water	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Pressure of heated steam	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Overall dimensions(LxWxH)	1660*960*1750	2580*1300*2280	2630*1520*2550	3200*1900*2945	3360*1950*3050	3760*2143*3155	4075*2712*3580	4200*3200*4000
Weight	2000	3300	4500	6500	7200	10000	14500	19500

♣ Machine Show:
♣ Machine Parts:
1) MAIN CYLINDER: The inner hole of the cylinder is finely ground, the cylinder lifting speed is adjustable, and the pressure control range is 0.3-0.8Mpa.
2) MIXING CHAMBER: W type jacketed structure,welded from high quality steel,and aging treatment,after finishing, the inner wall surface is plated with hard chrome and polished,chrome plating thickness 0.15mm,hardness HRC50.The cavity of the mixing chamber can be cooled by cooling water or heated by steam.There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperature.
3) PRESSURE LEAD: M-type jacketed structure, welded by high-quality steel plate, after aging treatment, polished hard chrome, coating thickness 0.15mm, hardness HRC50. The pressure is surrounded by a leak-proof strip, P4 (bakelite / phenolic resin) material. Cooling water cooling or steam heating can be passed into the jacket cavity to meet the mixing process requirements.
4) ROTOR SHAFT: Rotor shaft and rotor body and prism material are 42CrMo,a 5mm wear-resistant hard alloy is deposited on the rib top and other working surfaces,hardness HRC50,after processing and polishing, the whole plate is hard chrome plated and polished, and the thickness of the chrome layer is 0.15mm. The rotor shaft is hollow,a cavity with a hole leading to the blade,easy to force cooling or heating the rotor.The front and rear rotor shaft ends are sealed by a mosaic alloy ring and a static ring.Static ring alloy ring thickness 8mm, hardness HRC55,The copper ring is made of 10-1 material, embedded in a sealing ring filled with PTFE, and the adjustable spring-loaded end face self-lubricating sealing device has reliable sealing and long service life.

We can according to all your requirements for your design is most suitable for your machine !
♣ Company Information:
(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5) supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine, rubber refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, precuring equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.
♣ Foreigners Visit:

♦ Contact us ! ♦
♥ We can according to all your requirements, design your machine you require!
♥ If you are interested in our products, please contact me !

---
