High Purity Moulded Graphite Blocks / Rods/ Sheets for Crucible Making

Product Description

Product Description

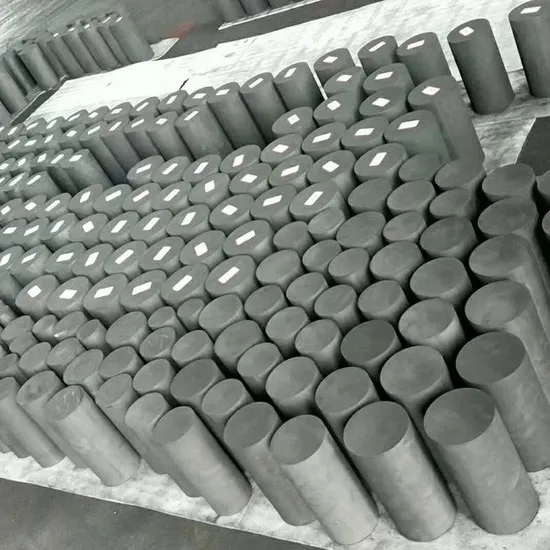

Molded and isostatic pressed graphite is made of high-quality calcined petroleum coke, pitch coke, carbon black, artificial graphite powder, coal tar pitch and other raw materials. It is formed by molding or isostatic pressing, pressure roasting, repeated soaking for 2-3 times, graphitization and high-temperature extraction. Mainly used in electric discharge machining, continuous casting, hard alloys, solar photovoltaic, sintered molds, glass, pharmaceuticals, aerospace and other industries.Detailed Photos
Product Parameters

Molded graphite materials for sintering and continuous casting industries
Model	Bulk density	Electrical resistance	Thermal conductivity (100ºC)	CET (-600ºC)	Shore hardness	Flexural strength	Compressive strength	Elastic modules	ASH
	g/cm³	µΩ.m	W/m.k	10-6/ºC	HDS	Mpa	Mpa	Gpa	PPM
JSM-5	1.8	8-10	125	4.9	45	40	80	9.5	500
Isostatic graphite materials for sintering, continuous casting, high temperature casting industry
Model	Bulk density	Electrical resistance	Thermal conductivity (100ºC)	CET (-600ºC)	Shore hardness	Flexural strength	Compressive strength	Elastic modules	ASH
	g/cm³	µΩ.m	W/m.k	10-6/ºC	HDS	Mpa	Mpa	Gpa	PPM
JSI-1	1.9	8-10	135	3.6	55	55	105	12	500
Isostatic graphite materials for PV industry
Model	Bulk density	Electrical resistance	Thermal conductivity (100ºC)	CET (-600ºC)	Shore hardness	Flexural strength	Compressive strength	Elastic modules	ASH
	g/cm³	µΩ.m	W/m.k	10-6/ºC	HDS	Mpa	Mpa	Gpa	PPM
JSI-2	1.72	10-13	100	5	40	30	65	9.2	500
JSI-3	1.81	11-14	120	4.5	60	45	90	10.5	500
Isostatic graphite materials for EDM industry
Model	Bulk density	Electrical resistance	Shore Hardness	Rockwell Haedness		Flexural Strength		Grain Size
	g/cm³	µΩ.m	HDS	HRL		Mpa		µm
JSI-4	1.76	12-16	40	94		40		8
JSI-5	1.78	12-16	45	100		45		4
JSI-6	1.84	12-16	70	105		55		6
Isostatic graphite materials for 3D molds industry and other industry
Model	Bulk density	Electrical resistance	Thermal conductivity (100ºC)	CET (-600ºC)	Shore hardness	Flexural strength	Compressive strength	Elastic modules	Grain Size
	g/cm³	µΩ.m	W/m.k	10-6/ºC	HDS	Mpa	Mpa	Gpa	µm
JSI-7	1.88-1.92	10-14	110	3.9	75	60	125	12	2
JSI-8	1.81	15-19	80	5.8	80	43	130	7.5	12
JSI-9	1.85	12-16	105	4	55	50	105	10	8
JSI-10	1.85	12-16	110	4	60	55	120	11	4

Packaging & Shipping
Company Profile
JinShi Graphite/Carbon Co.,Ltd is specialized in manufacturing and exporting many kinds of raw materials used in steel mill and foundry factory . Our factory covering an area of 54,450 square meters.production capacity is 300,000 tons each year. There are professional quality control system,technical team , sales team, service team. Our company focuses on carbon product for more than 10 years.Our main goods contain:graphite electrode RP/HP/UHPgraphite petroleum cokecalcined petroleum cokecalcined anthracite (carbon raiser)gas calcined anthracite(GCA)electrical calcined anthracite(ECA)silicon carbidegraphite electrode powdergraphite electrode blockFine Grain Graphite and Medium Grain GraphiteIsostatic pressing graphiteMoulded graphitegraphite cruciblebaked anode block.side products of graphiteused graphite blockused graphite electrodeSincerely hope to create future with you.
Exhibitons
FAQ
QI: Do you have brochure?
A: Yes. Please contact us to get the E-brochure by email or trademanger or Skype or whatsapp.
Q2: Can we visit your factory?
A: Yes. Welcome to visit us.
Q3:What's the goods quality?
A: Yes. We do 100% test the goods before the shipment
Q4: What's the MOQ?
A: 1 ton, 5tnos, 10tons or 20tons...It's negotiable.
Q5: What's the Delivery Time?
A:It's about 10-30 days afer get the payment.but please check with us for the stock in advance.
Q6: Can we test sample first?
A: Yes. but the freight is required. You can also test the goods at our factory before dispatch.
Why Choose US:
High quality, good service, and competitive price!
We are looking forward to cooperating with you in near future!

---
