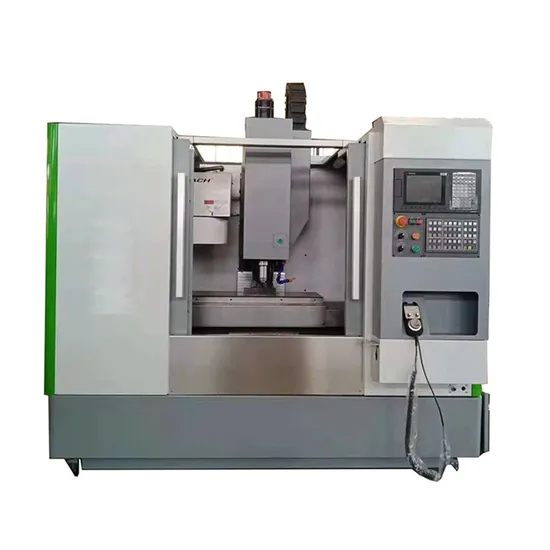

Milling CNC Vertical Machining Center Vmc640 CNC Milling Machine

Product Description

milling cnc vertical machining center VMC640 cnc milling machine
cnc vertical machining center VMC640 Main Technical Parameter

	unit	VMC640
worktable :
Table size	mm	1000*400mm
T slot	no	3
Centre distance	mm	120
T-Width	mm	14
Max. load of worktable	kg	300
machining range :
Longitudinal travel	mm	600
Cross travel	mm	400
Vertical travel	mm	500
spindle nose to table surface	mm	120-620
spindle :
Spindle taper		BT40
Speed Range	rpm	40-8000
Spindle output torque (Max.)	N.M	26.3/48
motor
spindle motor power	kw	5.5
feed :-
cuttiing feed X/Y/Z	mm / min	1-10000
rapid feed X/Y/Z	m / min	30/30/18
feed motor (X/Y/Z)	kw	1.2/1.2/1.4
tool magazine
tool magazine capacity	piece	16
Max. tool weight	kg	8
Max. Tool dia. (full/empty)		80/150
Max. Tool length	mm	300
Tool changing time (tool to tool/cut to cut)	s	1.75
accuracy
positioning accuracy	mm	±0.005/300 JIS
repeat positioning accuracy	mm	±0.003 JIS
overall dimensions(LxWxH)	mm	280*2100*2500
Machine weight	kg	2800/3000

cnc vertical machining center VMC640 standard accessories:
Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm), ,
X,Y axis Taiwan or Germany linear guide ways and Z axis Harden box type,
Taiwan or Germany ball screws
Taiwan arm type tool magazine with 16pcs
spindle blowing chip removal system,
spindle air curtain protection
Japan Nachi or Germany FAGbearings,
auto centralized lubrication system,
rigid tapping
two water cooling, one air cooling
electrical hand wheel,
working lamp,
RS232 interface,
alarm light
DNC online processing
CE Electrical
cnc vertical machining center VMC640 Optional accessories: 1.the 4th axis rotary table 200mm with manual tail stock:
2. chain type chip removal system with flushing
Screw type chip removal system with flushing
3. Renishaw tool setting probe TS27R
4.BT40-120 direct connection spindle 10000rpm(highest speed 8000rpm) with oil cooler
5.schneider electric
6.heat exchanger
Vertical machining center more photos:
If you are interested in cnc vertical machining center, pls contact us

---
